SCT0635-013-P-PH-CZ - Datasheet
MBA
Category Information

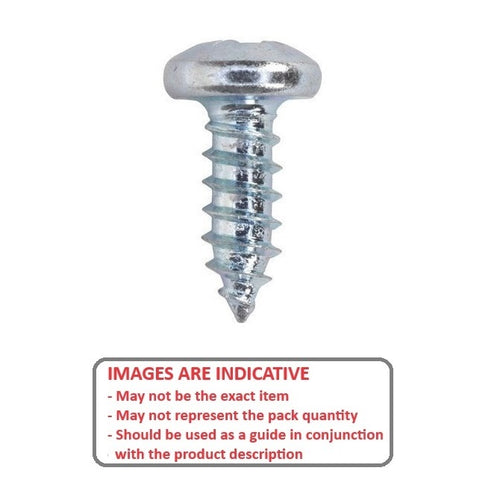

Screws - Self Tapping - Pan Head - Zinc PlatedZinc Plated Pan Head Self Tapping Screws. Type AB Steel Self Tapping Screws.

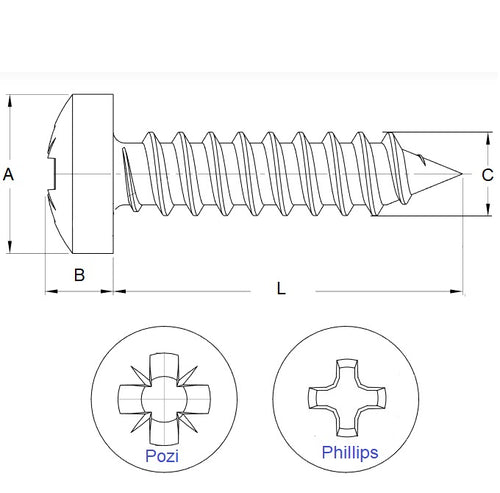

- Length is from the tip of the screw to the base of the head. Ie, does not include the head.
Product Data
- Approx Diameter
:
6.35
mm
+/- 0.05
(Equiv. 0.25 in.) - Thread Length (L)
12.7
mm
(Equiv. 0.5 in.) - Gauge 14 + / - 0.25
- Type Pan / Philips
- Material Zinc Plated Steel
Product Compliance and Data
Additional Resources
- Screws & Nuts Catalogue
- Shoulder Screws Catalogue
- Socket Set (Grub) Screws Catalogue
- Thumb Screws & Thumb Nuts Catalogue
- Thread Size Chart - Combined Imperial & Metric
Cross References
- 90190A310
- Hitech MSPPTZP1412
