W0064-LI-012-006-S4 - Datasheet

MBA

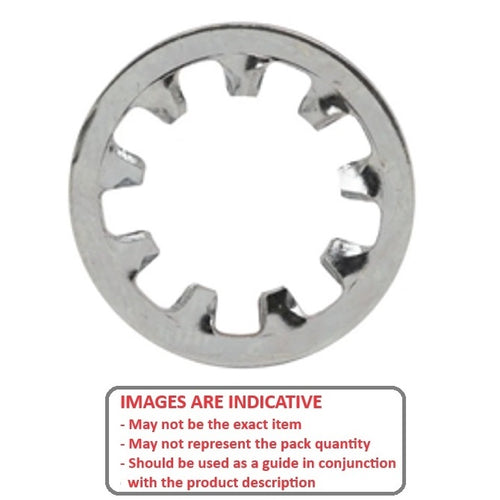

Stainless Steel Internal Tooth Lock Washers. Stainless steel, internal toothed selection.

Lock washers are available in many different materials and types, including tabbed, split and toothed. An expanded range may be available on special order. Please enquire.
Designed to prevent nuts and bolts from loosening due to vibration or torque by creating tension and friction within the bolted joint, effectively securing the connection and preventing unwanted rotations.
Dimensions are nominal and may vary between batches.
These are not the same as push on retaining rings. This product is not designed to grip a shaft. Search for push on retaining rings if that is what you require.

Deleted Item. Available while stocks last.

Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.

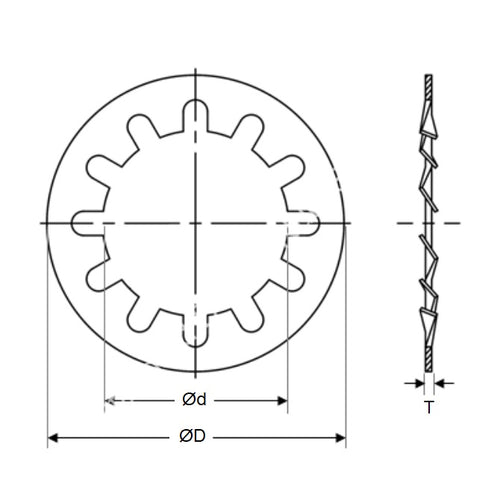

Nominal Inside Diameter : 6.35 mm
(Equiv. 0.25 in.)
Outside Diameter 11.9 mm
(Equiv. 0.469 in.)
Material Thickness (T) 0.60 mm
(Equiv. 0.024 in.)
Nominal Screw Size M6, 1/4, 14 Gauge
Material Stainless Steel 304 (Similar to A2, 18-8) HRB80

Country of Origin: US
