Miniature Bearings Australia
NSO-0064-0111-0064-FC - Datasheet
MBA
Category Information

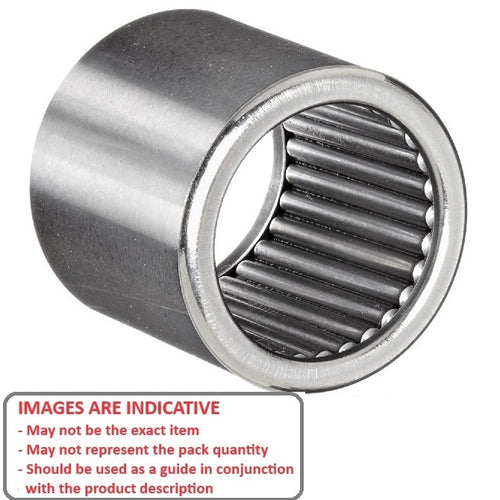

Bearings - Needle Roller without Inner Ring - Shell Type - Open EndsOpen Ends Shell Type Needle Roller without Inner Ring Bearings. Light Weight.
- Pair these bearings with a suitable inner ring, or run them directly on a high quality shaft.
- An expanded range may be available on special order. Please enquire.
- Compact Design.

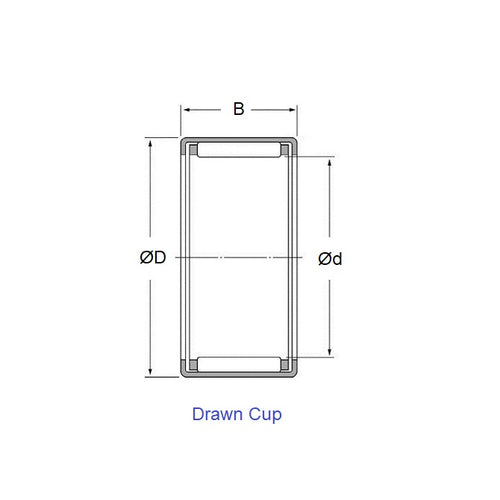

Product Data
- Shaft Diameter (d)
:
6.350
mm
(Equiv. 0.25 in.) - OD (D)
11.112
mm
(Equiv. 0.437 in.) - Width (B)
6.350
mm
(Equiv. 0.25 in.) - Basic Dynamic Load Rating 256 Kgf
- Basic Static Load Rating 148 Kgf
- Limiting Speed Grease 31350 RPM
- Limiting Speed Oil 10000 RPM
- Cage Type None
- Seals None
- Type Open
- Material Chrome Steel
Product Compliance and Data
Additional Resources
- Catalogue: Ceramic Bearings Catalogue
- Catalogue: Plastic Bearings Catalogue
- Catalogue: Standard Bearings Catalogue
- General: Bearing Cleanliness
- General: Bearing Clearances
- General: Bearing Flanges & Snap Rings
- General: Bearing Retainers (Cages)
- General: General Loads Information
- General: Lubrication
- General: Prefix & Suffix Guide
- General: Static vs Dynamic Loads
- Materials: 316 Stainless
- Materials: CASSTOP Anti-Corrosion Bearing Material
- Materials: Ceramic vs Ceramic Hybrid
- Materials: Ceramic Bearings in Vibratory Applications
- Materials: Ceramic Hybrid Bearings in Vibratory Applications
- Materials: General Bearing Materials
- Materials: Magnetism & Bearings
- Precision: 316 Stainless & Plastic Bearing Tolerances
- Precision: ABEC Basic Information
- Precision: Precision Bearing Tolerances
- Problem Solving: Bearing Failure
- Problem Solving: Fatigue (L10 Life)
- Problem Solving: Noise
Cross References
- Torrington B-44
- Small Parts NR-B44
- INA S-44
- S44
- NRB44
