HPE-064-12-022-C - Datasheet
MBA
Category Information

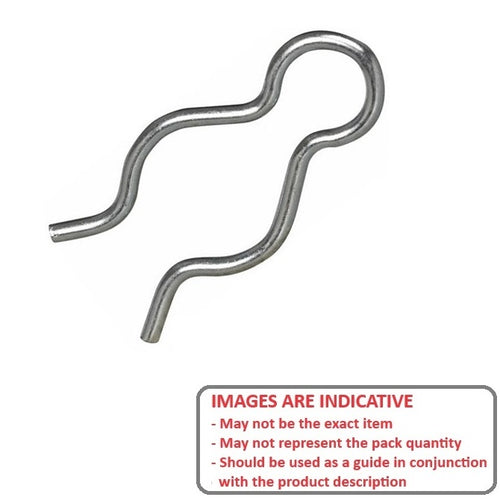

Pins - Hitch ExternalHitch External Pins. Similar to R-Clips, but designed for both arms to fit around a shaft groove rather thand having one arm through a bored hole.
Product Data
Deleted Item. Available while stocks last.
Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.
- Recommended Groove Diameter
:
6.35
mm
(Equiv. 0.25 in.) - Rec. Groove Width
1.6
mm

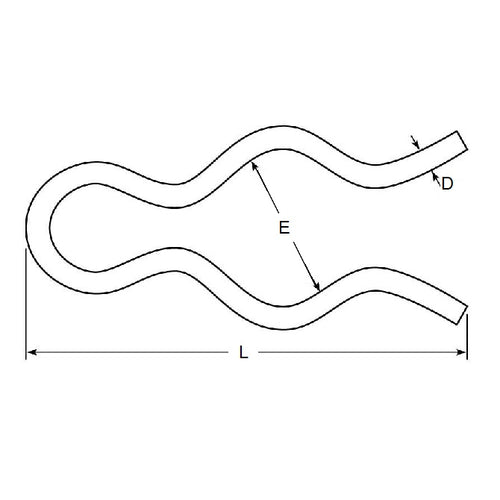

(Equiv. 0.063 in.) - Wire Thickness (D)
1.2
mm
(Equiv. 0.047 in.) - Inside Eye Diameter (E) 4.8 mm
- Length (L) 22.2 mm
- Material Spring Wire, Oil-Tempered
Product Compliance and Data
Additional Resources
Cross References
- A9Q34-X4
- A9Q34X4
