Miniature Bearings Australia
CP-064-095-22-035-R1-SC - Datasheet
MBA
Category Information

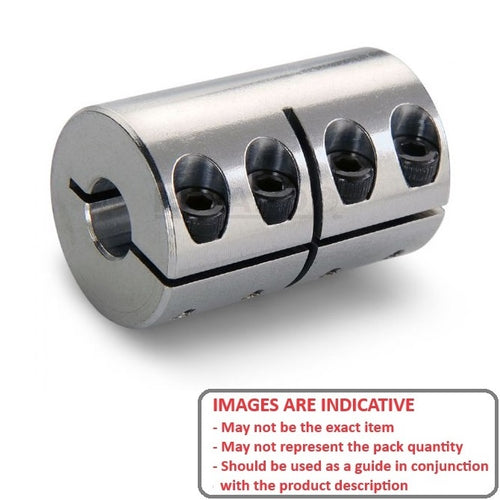

Couplings - Rigid - Clamp - 1 Piece - SteelSteel 1 Piece Clamp Rigid Couplings. 12L14 Steel
- An expanded range may be available on special order. Please enquire.
Product Data

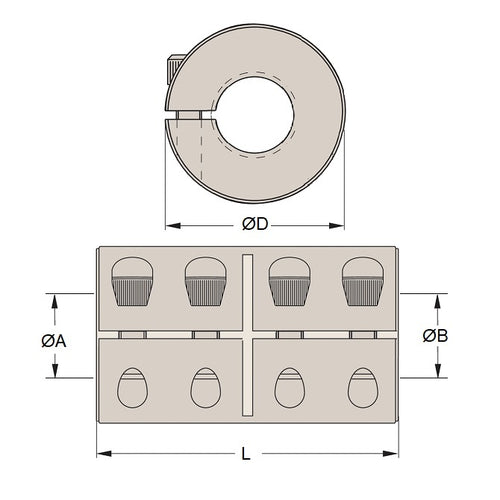

- Bore (b1)
:
6.350
mm
(Equiv. 0.25 in.) - Bore (b2)
9.525
mm
(Equiv. 0.375 in.) - OD (D)
22.223
mm
(Equiv. 0.875 in.) - Length (L) 34.925 mm
- Material Steel
Product Compliance and Data
Additional Resources
Cross References
- CC-302
- CC302
