CP-064-064-16-025-R1-SC - Datasheet

MBA

Category Information

Couplings - Rigid - Clamp - 1 Piece - Steel

Steel 1 Piece Clamp Rigid Couplings. 12L14 Steel

  • An expanded range may be available on special order. Please enquire.

Product Data

  • Bore (b1) : 6.350 mm
    (Equiv. 0.25 in.)
  • Bore (b2) 6.350 mm
    (Equiv. 0.25 in.)
  • OD (D) 15.875 mm
    (Equiv. 0.625 in.)
  • Length (L) 25.400 mm
  • Material Steel
Country of Origin: US

Product Compliance and Data

Additional Resources

    Cross References

    • 61005K311
    • CC-301
    • CC301
    View full details

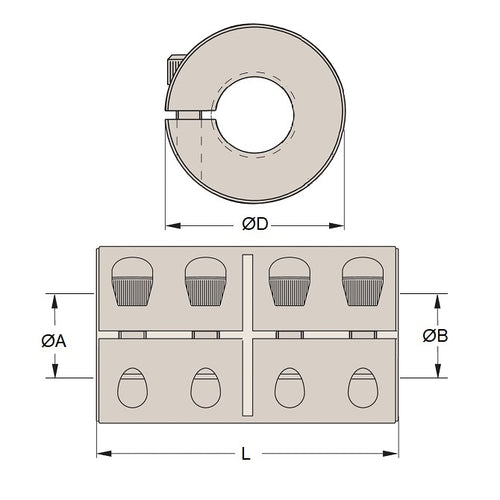

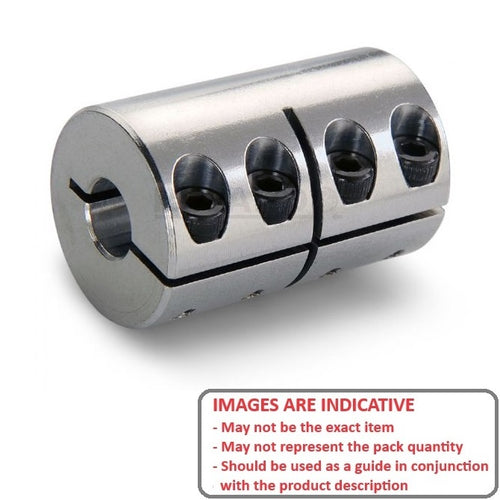

    CP-064-064-16-025-R1-SCDiagramCP-064-064-16-025-R1-SCImage
