Miniature Bearings Australia
BP0032-0064-0127-DT - Datasheet
MBA
Category Information

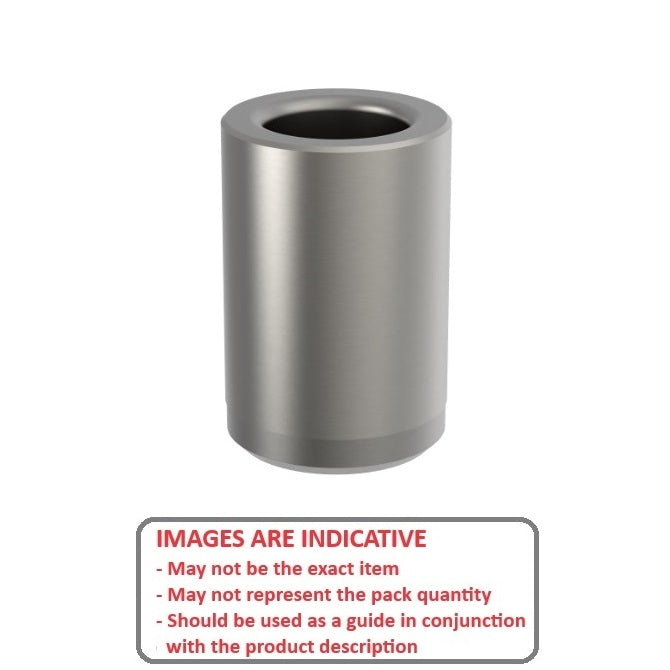

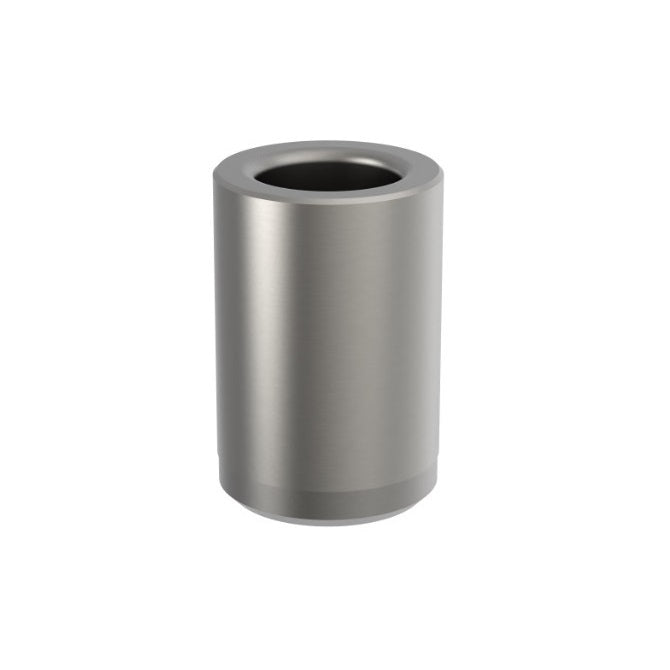

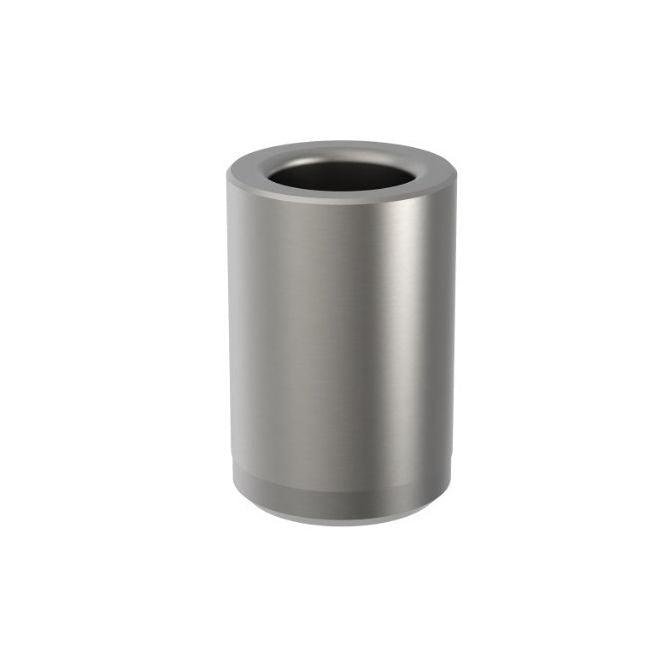

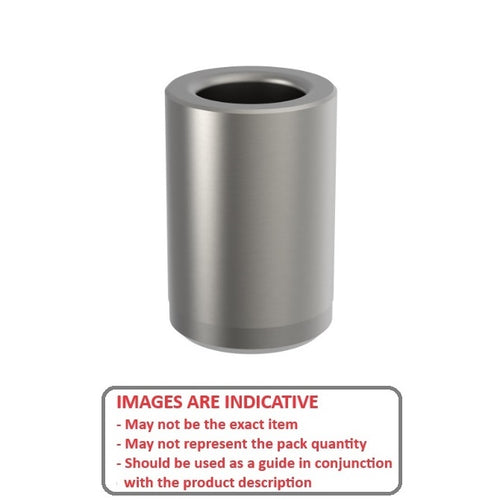

Bushings - Drill - Plain - Press Fit - Tungsten CarbideTungsten Carbide Press Fit Plain Drill Bushings. Unflanged press fit selection. Tungsten carbide.
- Hardened metal component that provides a precise guide for cutting tools, ensuring accurate and repeatable hole placement in jigs and fixtures.
- Constrains the drill bit, it reduces tool deflection and tool wear, leading to more consistent holes and longer tool life.
- Hardness: RC 67-69
- Permanently pressed into the jig plate creating a precise location point. Used with fixed or slip renewable bushings.
Product Data

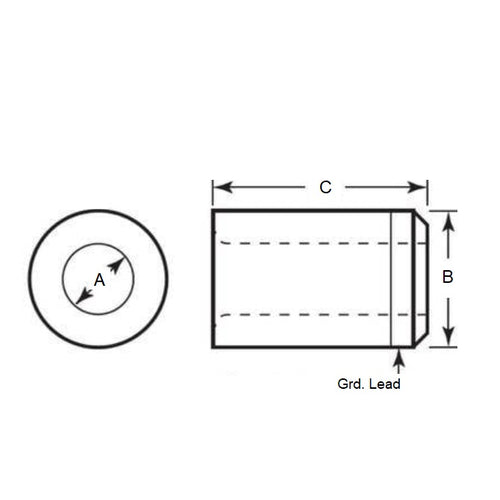

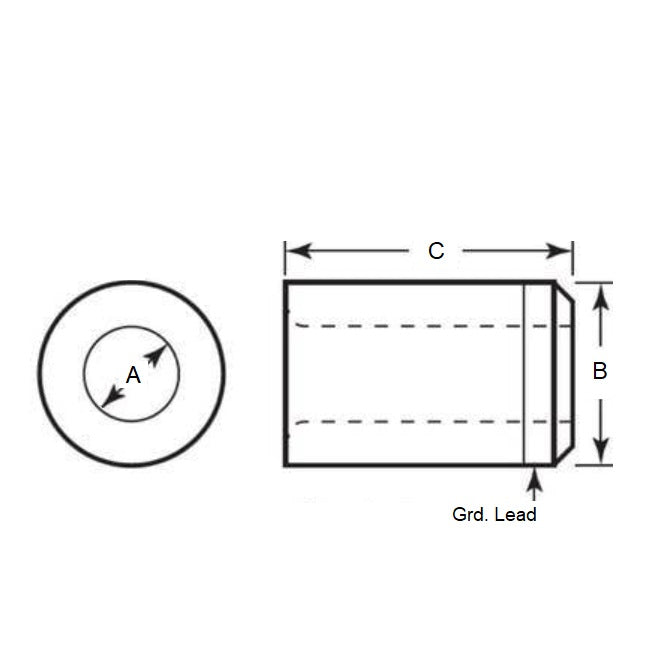

- Outside Diameter (OD)
:
6.350
mm
(Equiv. 0.25 in.) - Drill Size
3.175
mm
(Equiv. 0.125 in.) - Length
12.700
mm
(Equiv. 0.5 in.) - Material Carbon Steel
Product Compliance and Data
Additional Resources
Cross References
- 33455A205
- BTC-20
- BTC20
