COL-00635-019-25-GF-S4 - Datasheet
MBA
Category Information

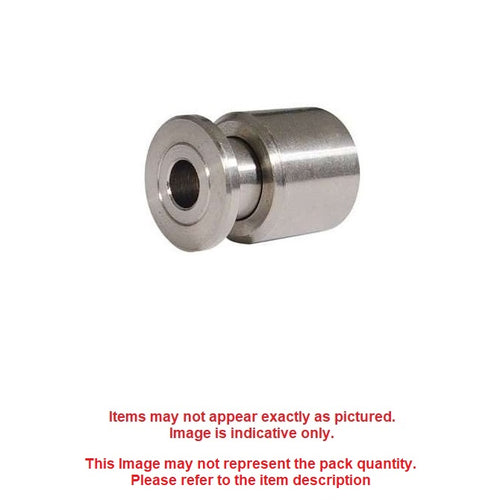

Collars - Shaft - Gripfast - 304 Stainless Steel304 Stainless Steel Gripfast Shaft Collars. Self Locking - Quick Release.
- Simple, ring-shaped component, typically made of metal or plastic, that fastens around a round shaft to hold other parts in place or to act as a mechanical stop.
- Essential in power transmission applications for securing items like bearings, sprockets, and gear assemblies.
- 304 Stainless Body, Retention Ring, Balls and Springs.
Product Data
- Suitable Shaft Size (d)
:
6.350
mm
(Equiv. 0.25 in.) - Outside Diameter (D)
18.80
mm
(Equiv. 0.74 in.) - Overall Width (S)
25.4
mm
(Equiv. 1 in.) - Sleeve Length (D) 16.205 mm
- Material Stainless Steel 304 (Similar to A2, 18-8) HRB80
Product Compliance and Data
Additional Resources
Cross References
- SMI250SS
- SMI-250SS
- A7X34-0250
- A7X340250
