R188-ZS-ECO - Datasheet
ECO
Category Information
Bearings - Single Row Ball - Unflanged - Precision - Chrome SteelChrome Steel Precision Unflanged Single Row Ball Bearings. Chrome steel radial ball bearings.
- Single row radial ball bearings are arguably the most common, widely used type of bearing. They consist of an inner ring, an outer ring, a set of balls, and a cage that retains the balls in a circular path.
- Single row radial ball bearings are commonly used in a wide range of applications, including electric motors, fans, pumps, gearboxes, agricultural equipment, appliances, and automotive components.
- They are versatile, cost-effective bearings that provide reliable support for radial loads and some axial loads in one direction. An expanded range may be available on special order. Please enquire.
- Standard single row radial ball bearings.
Product Data

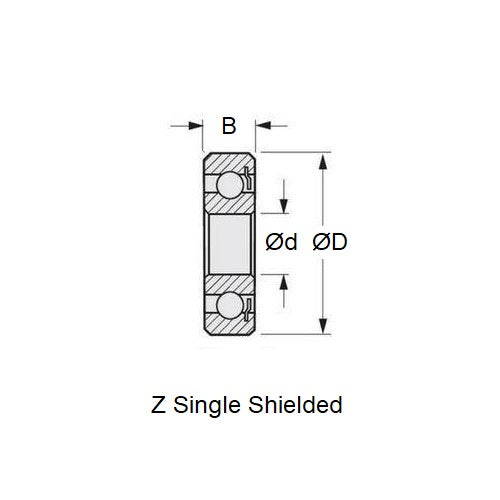

Non ISO Width
- ID (d)
:
6.350
mm
(Equiv. 0.25 in.) - OD (D)
12.700
mm
(Equiv. 0.5 in.) - Width (B)
3.175
mm
(Equiv. 0.125 in.) - Precision Grade Economy
- Closure Type ZS
- Bearing Type Radial
- Material Chrome Steel SAE 52100
- Lubrication Type Oil
- Lubrication Name Standard Unspecified
- Basic Part R188
- Limiting Speed 47500
- Cage Type Standard
- Static Load Rating KGf 42.8
- Dynamic Load Rating KGf 104.5
- Radii 0.15 mm
- Inner Shoulder (UI) 8.00mm
- Outer Shoulder (UO) 11.00 mm
- Number of Balls 8
- Clearance ECO (5 to 20)
- Precision Grade ECO
- Closure Type ZS
- Max Temperature 120 Deg. C
