Miniature Bearings Australia
RLR-0635-0953-ST-F - Datasheet
MBA
Category Information

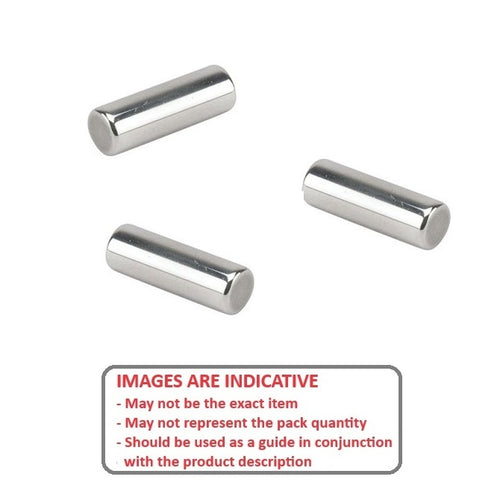

Rollers - SteelSteel Rollers. Hardened Steel Rollers as used in Cylindrical and Needle Roller Bearings
- Hardened Steel Rollers as used in Cylindrical and Needle Roller Bearings.
Product Data

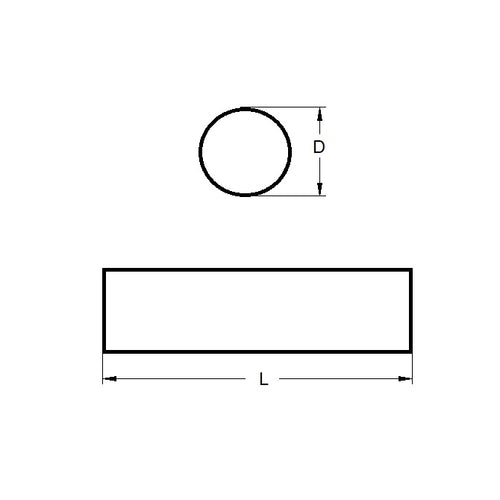

- Diameter (D)
:
6.350
mm
- 0.001 / - 0.003
(Equiv. 0.25 in.) - Length (L)
9.525
mm
-0.000 / -0.220
(Equiv. 0.375 in.) - Hardness 63 - 66 Rc
- End Type Flat
- Material Chrome Steel SAE 52100
