BFM-250-B - Datasheet
MBA
Category Information

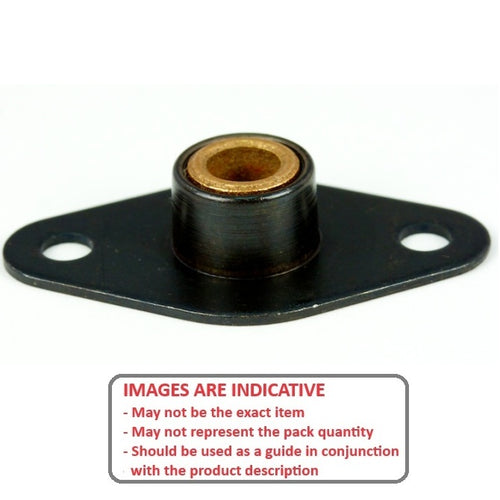

Housing Assembly - Flanged 2 Bolt - Self Aligning - Sintered BronzeSintered Bronze Self Aligning Flanged 2 Bolt Housing Assembly. Low profile self aligning flange mounted sintered bronze bearings
- An expanded range may be available on special order. Please enquire.
- +/- 5% Static Alignment
Product Data
Deleted Item. Available while stocks last.
Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.

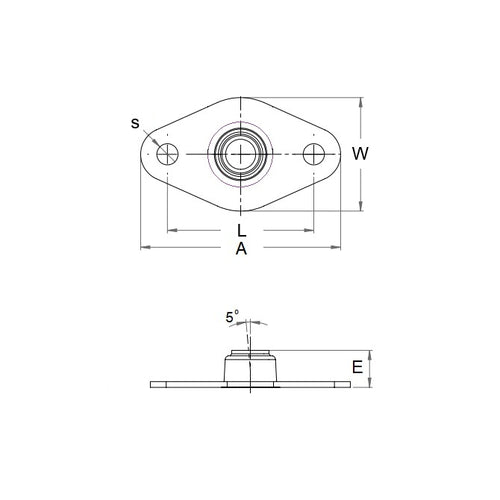

- Nominal Shaft Size
:
6.350
mm
(Equiv. 0.25 in.) - Width (W)
45.72
mm
(Equiv. 1.8 in.) - Overall Length (A)
13.49
mm
(Equiv. 0.531 in.) - Overall Height (E) 22.35 mm
- Min to Max Shaft Dia. 6.370 to 6.383 mm
- Max. Radial Dynamic Load 845 N
- Bolt Hole Centres (L) 30.99 mm
- Max Speed 15270
- Material Sintered Bronze SAE 840
Product Compliance and Data
Additional Resources
Cross References
- 5912K12
