SHLD064-006-SKT-J-C - Datasheet
MBA
Category Information

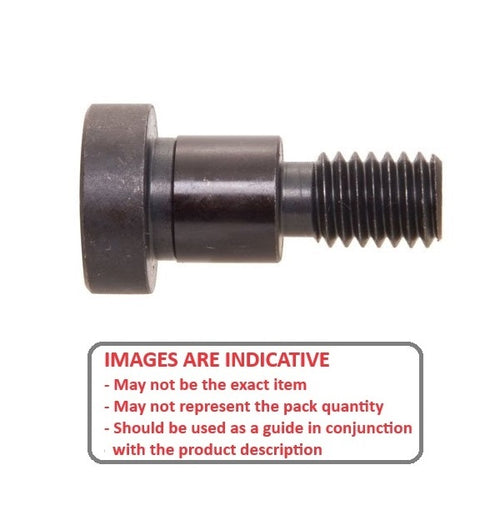

Screws - Shoulder - Jig and FixtureJig and Fixture Shoulder Screws. Used in construction of tool, jig and fixture work. 4140L heat treated steel with black oxide finish.
- Also known as Pivot Pin, Fulcrum Screw, Stripper Bolt, Stepped Screw and Shoulder Socket Cap Screw
Product Data

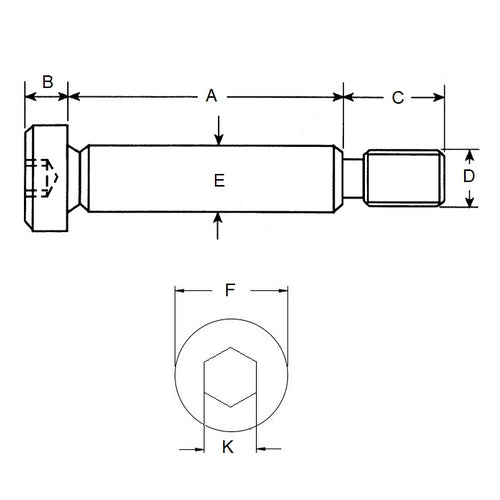

- Shoulder Diameter (E)
:
6.350
mm
- 0.051 / - 0.102
(Equiv. 0.25 in.) - Shoulder Length (A)
6.350
mm
(Equiv. 0.25 in.) - Thread (D) 10-24 UNC
- Max. Thread Length (C) 9.53 mm
- Head Height (B) 4.76 mm
- Head Diameter (F) 9.53 mm
- Hex Key Size 3.18 mm
- Material Steel 4140L Heat Treated
