REM-064-R-PP - Datasheet
MBA
Category Information

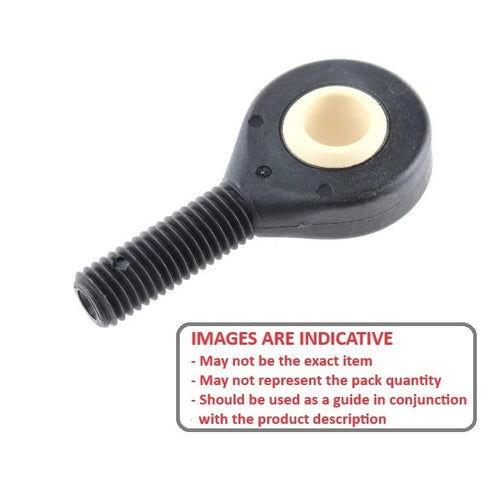

Rod Ends - Male - PlasticPlastic Male Rod Ends. Thermoplastic Body / L280(R) Polymer Ball. Also known as Heim Joints
- An expanded range may be available on special order. Please enquire.
- Dimensions not shown are available on request.
Product Data
- Eye Size (d1)
:
6.350
mm
(Equiv. 0.25 in.) - Overall Length (L)
49.20
mm
(Equiv. 1.937 in.) - Thread Size 1/4-28 UNF Right
- Min. Thread Length (l2) 25.40 mm
- Head Width (W) 6.35 mm
- Eye Width (W1) 9.27 mm
- Head Diameter (D) 19.05 mm
- Centre Height (l1) 39.67 mm
- Grease Nipple No
- Max Angle of Pivot 25 °
- Max Torque Strength 4.00 n.m
- Material Plastic
Product Compliance and Data
Additional Resources
Cross References
- 1064K52-RIGHT
- Igus KARI-04
- KARI04
- I518
- I-518
- 1064K52RIGHT
- S62GMR-025075R
- S62GMR025075R
