REF-064-R-CB - Datasheet
MBA
Category Information

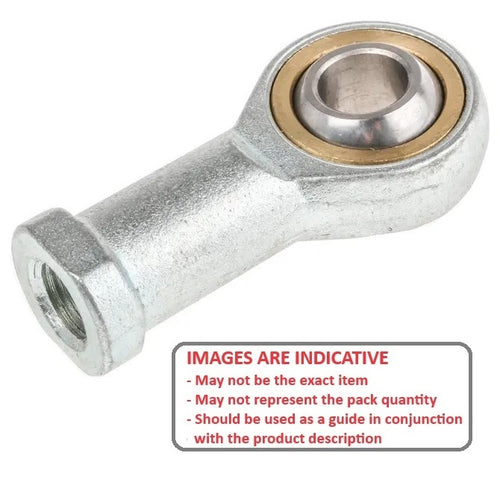

Rod Ends - Female - Steel - Plain - Bronze LinedBronze Lined Plain Steel Female Rod Ends. Imperial and Metric / Carbon Steel. Also known as Heim Joints
- An expanded range may be available on special order. Please enquire.
- Dimensions not shown are available on request.

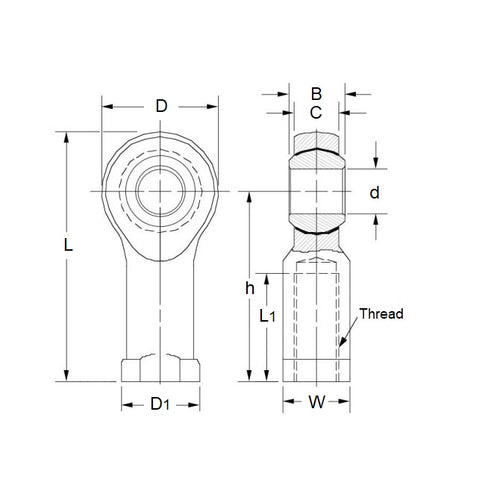

Product Data
- Eye Size : 6.35 mm
- Overall Length 42.85 mm
- Thread Size 1/4-28 UNF Right
- Thread Length 19.05 mm
- Head Width 7.14 mm
- Eye Width 9.53 mm
- Head Diameter 19.05 mm
- Centre Height 33.32 mm
- Grease Nipple No
- Body Width / Flange Width 9.53 / 11.89 mm
- Material Bronze Lined Steel
Product Compliance and Data
Additional Resources
Cross References
- 6072K154-RIGHT
- ASAHI® JAFB4
- KWK KFB4
- IKO PHSB4
- Nachi® PHSB-4
- NTN® SFI-B4
- 6072K154RIGHT
- SFIB4
