HF1-250-A - Datasheet
MBA
Category Information

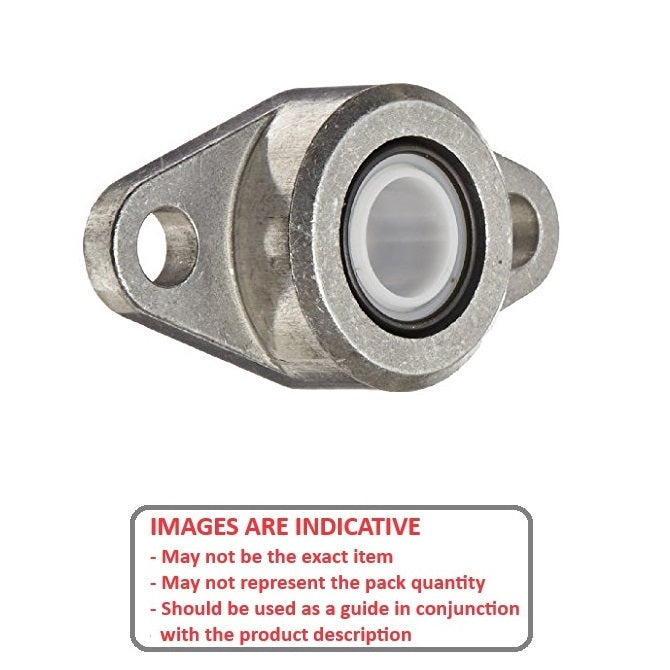

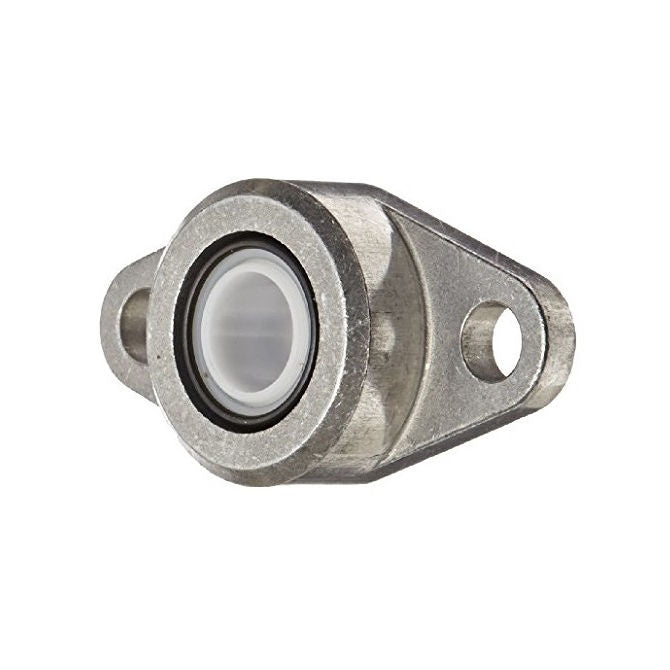

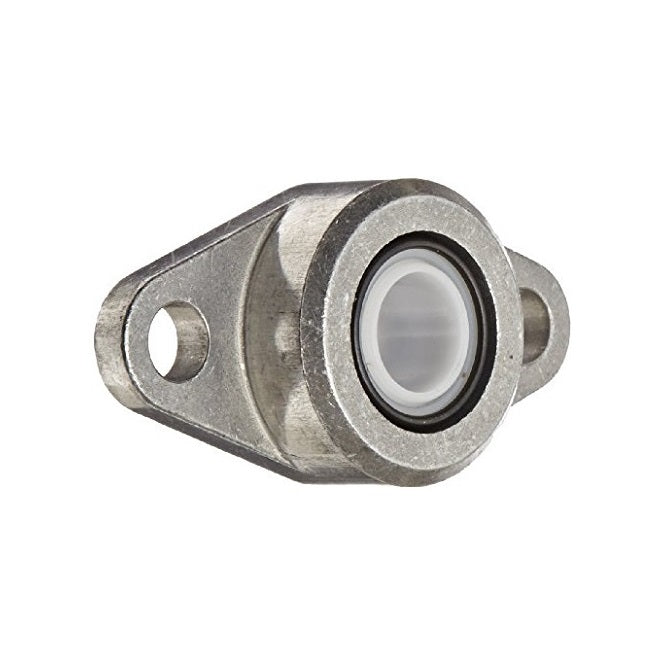

Housing Assembly - Flanged 2 Bolt - Self Aligning - PlasticPlastic Self Aligning Flanged 2 Bolt Housing Assembly. This is the main category in this series
- An expanded range may be available on special order. Please enquire.
- +/- 5% Static Alignment
Product Data
Deleted Item. Available while stocks last.
Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.

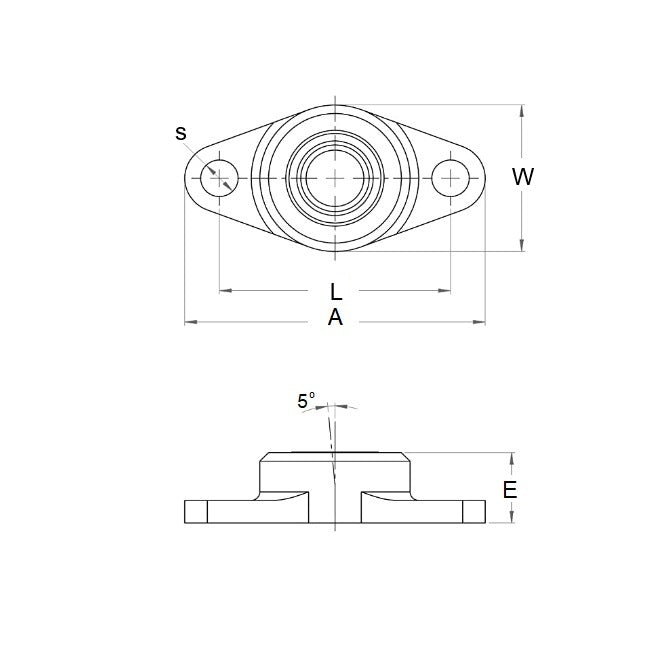

- Nominal Shaft Size
:
6.350
mm
(Equiv. 0.25 in.) - Width (W)
31.75
mm
(Equiv. 1.25 in.) - Overall Length (A)
41.40
mm
(Equiv. 1.63 in.) - Overall Height (E) 19.05 mm
- Min to Max Shaft Dia. 6.375 to 6.426 mm
- Max. Radial Dynamic Load 370 N
- Bolt Hole Centres (L) 9.65 mm
- Max Speed 1503
- Material Delrin ™
