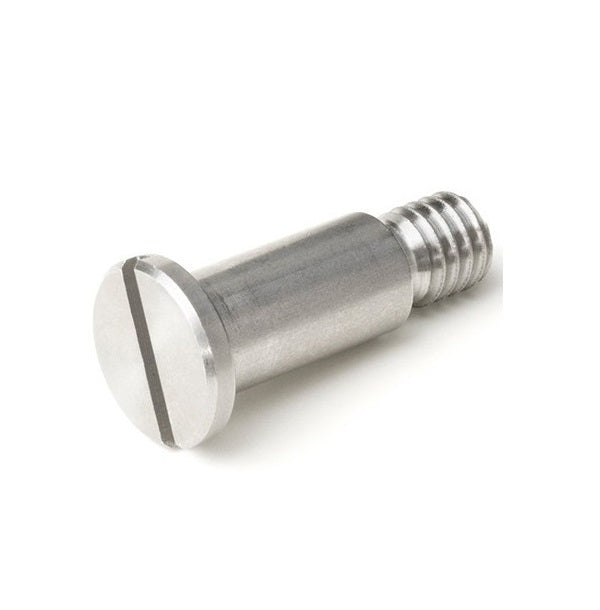

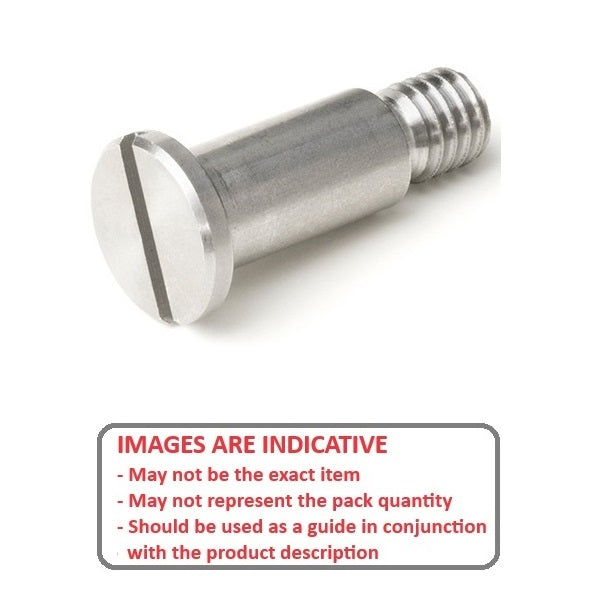

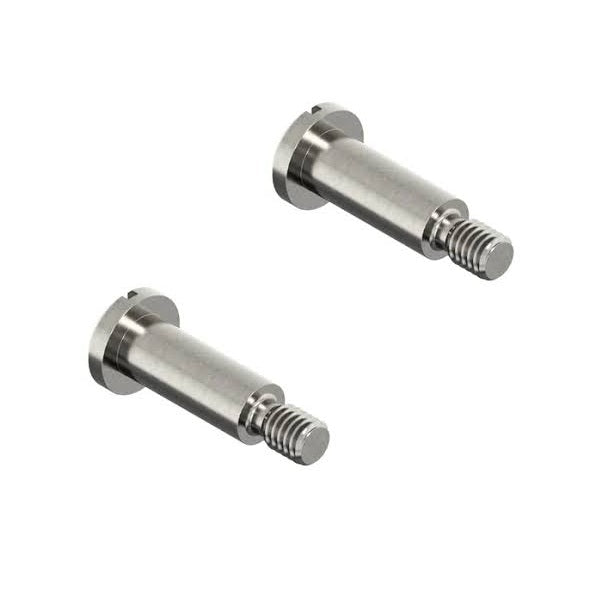

SHLD064-025-SL-S3 - Datasheet

MBA

Product Data

• Shoulder Diameter (E) : 6.350 mm _{- 0.025 / - 0.127}
  (Equiv. 0.25 in.)
• Shoulder Length (A) 25.400 mm
  (Equiv. 1 in.)
• Thread (D) 10-32 UNF (4.76mm)
• Max. Thread Length (S) 6.35 mm
• Head Height (H) 4.76 mm
• Head Diameter (D) 9.53 mm
• Drive Type Slotted Drive
• Material Stainless Steel 303/304 (Similar to A2, 18-8) HRB80

Product Compliance and Data

• RoHs Statement
• REACH Statement
• CoC
