HF2-250-N - Datasheet
MBA
Category Information

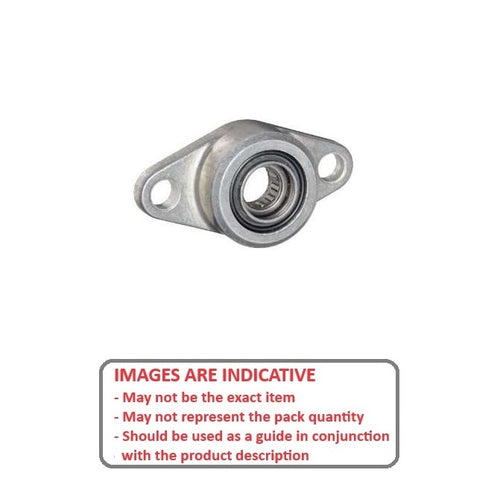

Housing Assembly - Flanged 2 Bolt - Self Aligning - Needle RollerNeedle Roller Self Aligning Flanged 2 Bolt Housing Assembly. Low profile self aligning flange mounted needle roller bearings
- +/- 5% Static Alignment
Product Data
Deleted Item. Available while stocks last.
Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.

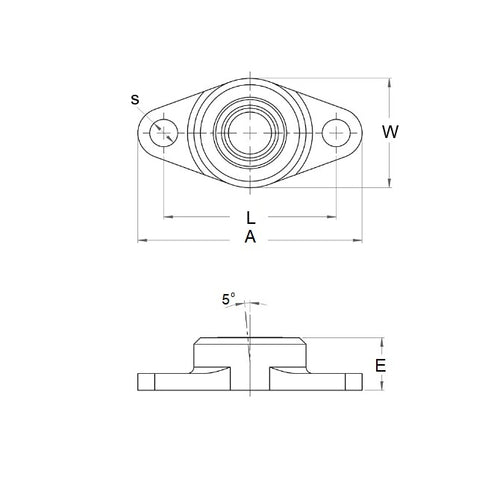

- Nominal Shaft Size
:
6.350
mm
(Equiv. 0.25 in.) - Width (W)
44.45
mm
(Equiv. 1.75 in.) - Overall Length (A)
57.15
mm
(Equiv. 2.25 in.) - Overall Height (E) 28.70 mm
- Min to Max Shaft Dia. 6.342 to 6.350 mm
- Max. Radial Dynamic Load 2180 N
- Bolt Hole Centres (L) 11.18 mm
- Max Speed 4400
- Material Steel
