HB21SN-25161 - Datasheet
MBA
Category Information

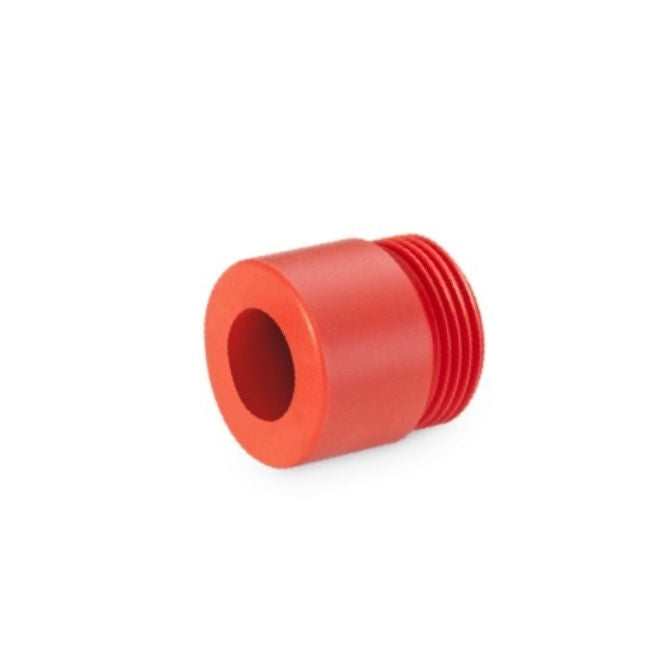

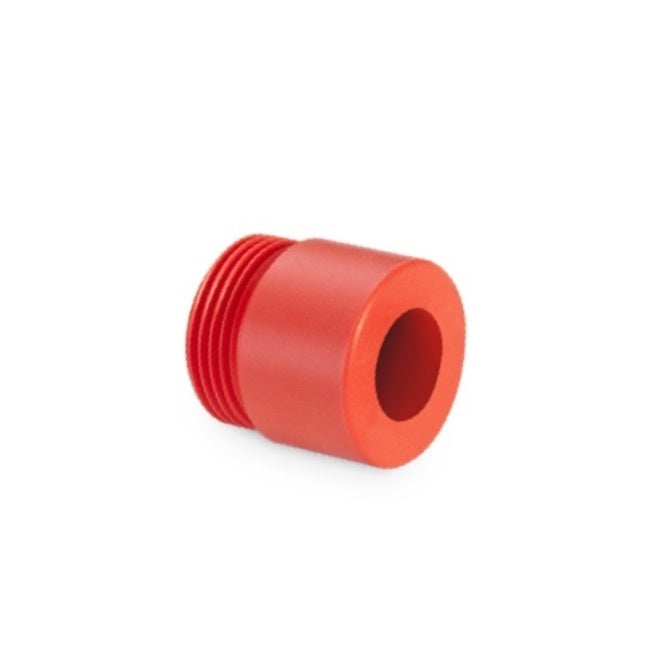

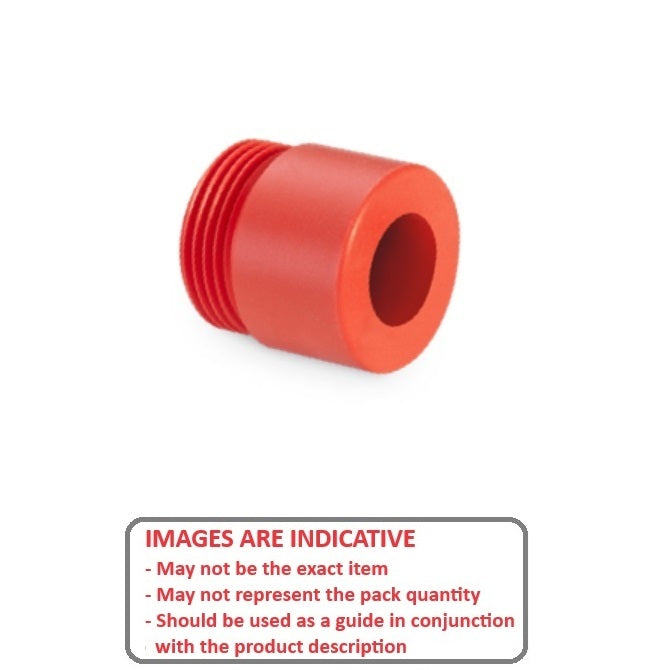

Leadscrew - Nuts - Imperial - Acme - SupernutsSupernuts Acme Imperial Nuts Leadscrew. Acme Leadscrew Nuts - Use with Acme Leadscrew thread and flanges for mounting
- An expanded range may be available on special order. Please enquire.
Product Data
Deleted Item. Available while stocks last.
Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.
- Screw Outside Diameter
:
6.350
mm
(Equiv. 0.25 in.) - Number of Threads Per Inch 16
- Number of Starts 1
- Lead 1.600 mm
- Efficiency 48 %

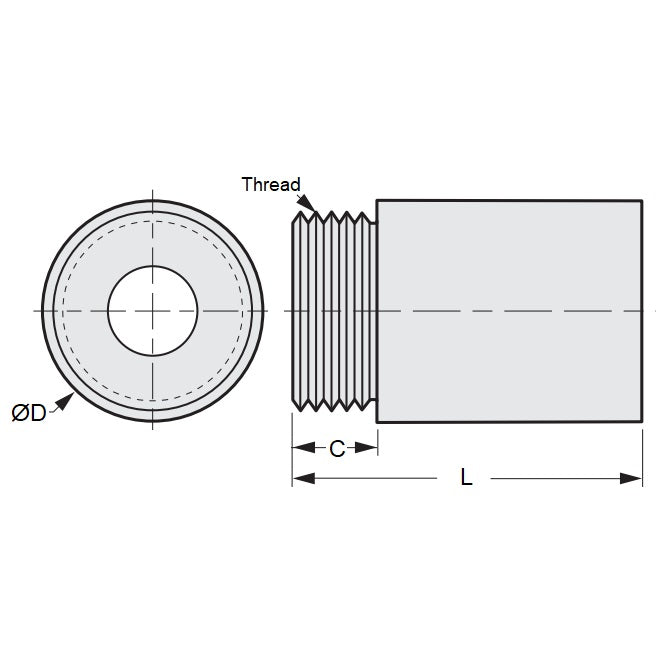

- Nut Outside (OD) / Length (L) 15.875 / 12.700 mm
- Mounting Thread (TH x C) 9/16-18 x 3/16 inch long
- Design Load 20 kg
- Max Static Load 102 kg
Product Compliance and Data
Additional Resources
Cross References
- HB21SN-25161
