Miniature Bearings Australia
AR201RS - Datasheet
MBA
Category Information

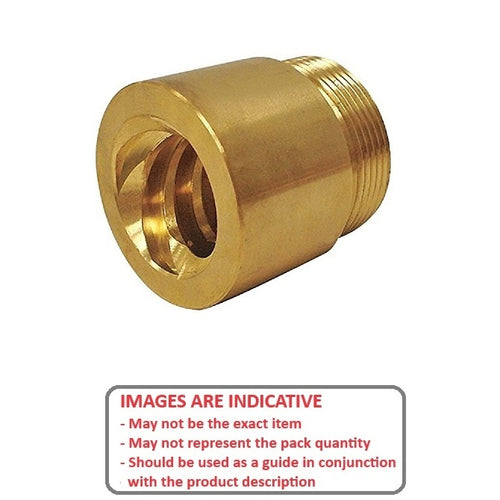

Leadscrew - Nuts - Imperial - Acme - BronzeBronze Acme Imperial Nuts Leadscrew. Acme Leadscrew Nuts - Use with Acme Leadscrew thread and flanges for mounting
- An expanded range may be available on special order. Please enquire.
- Nut only. Match with appropriate leadscrew.
Product Data
Deleted Item. Available while stocks last.
Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.

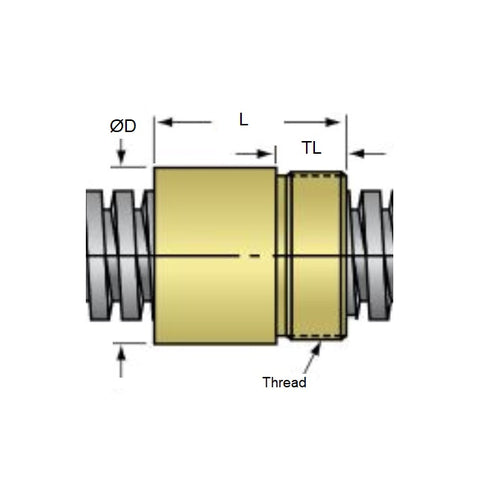

- Screw Outside Diameter
:
6.350
mm
(Equiv. 0.25 in.) - Number of Threads Per Inch 16
- Number of Starts 1
- Lead 1.5875 mm
- External Nut Mounting Thread 9/16-18
- Direction Right Hand
- Material Bronze
Product Compliance and Data
Additional Resources
Cross References
- AR-201
- AR201
