SHLD064-016-SL-P-S3 - Datasheet

MBA

Product Data

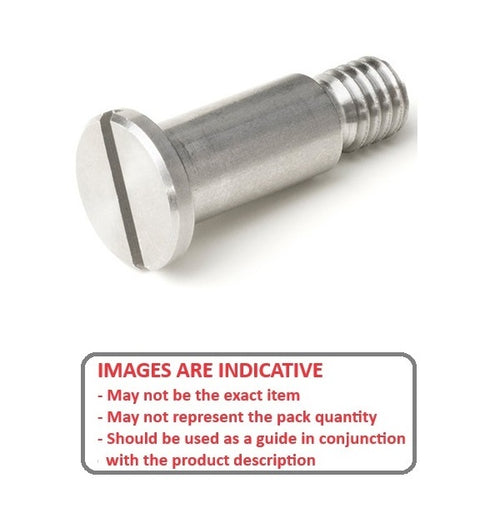

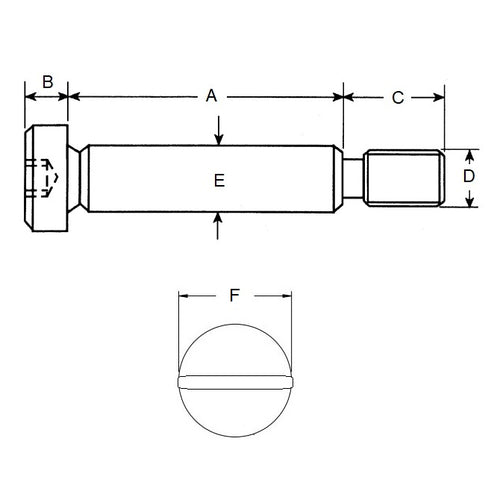

• Shoulder Diameter (E) : 6.350 mm _{- 0.013 / - 0.038}
  (Equiv. 0.25 in.)
• Shoulder Length (A) 15.900 mm
  (Equiv. 0.626 in.)
• Thread (D) 10-32 UNF (4.76mm)
• Max. Thread Length (S) 6.35 mm
• Head Height (H) 4.78 mm
• Head Diameter (D) 9.53 mm
• Drive Type Slotted Drive
• Thread Type Class 3A Thread
• Material Stainless Steel 303/304 (Similar to A2, 18-8) HRB80
