LCHP-0064-021-CC - Datasheet
MBA
Category Information

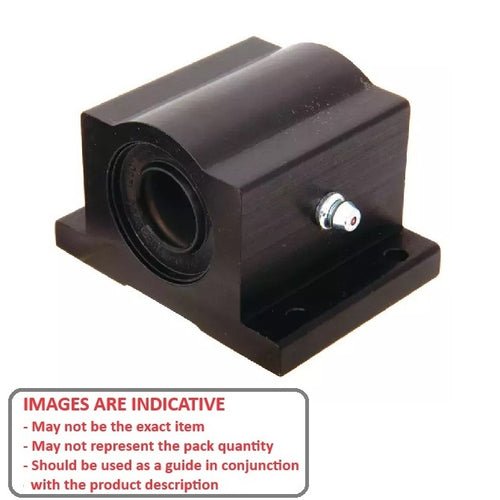

Linear - Housings Pillow Block Closed Ceramic CoatedHousings Pillow Block Closed Ceramic Coated Linear. Approved for direct food contact in applications where animal fat or food approved lubricants are present.
- Able to withstand rapid oscillation, contamination, shock/vibration, wash downs, submersion and shaft brinelling.
- DO NOT USE WD-40 or Silcone based spray lubricants.

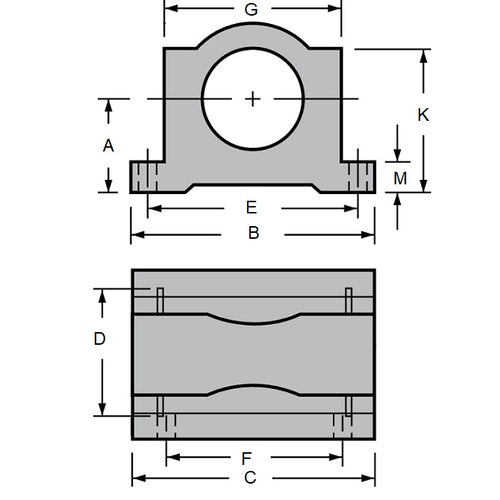

Product Data
- Nominal Diameter
:
6.35
mm
(Equiv. 0.25 in.) - Widths (B x C)
41.28 x 30.16
mm
(Equiv. 1.625 in.) - Length (D)
20.64
mm
(Equiv. 0.813 in.) - Bolt Distances (E x F) 33.32 x 19.05 mm
- Bolt Hole Size 3.97 mm
- Height (K) 19.05 mm
- Centre Height (A) 11.10 mm
- G 25.40 mm
- M 4.76 mm
- Max Static Load Capacity 425.92 kg
Product Compliance and Data
Additional Resources
Cross References
- 6674K11
- LMB300
- LMB-300
