ED7CRS - Datasheet
ACE
Category Information

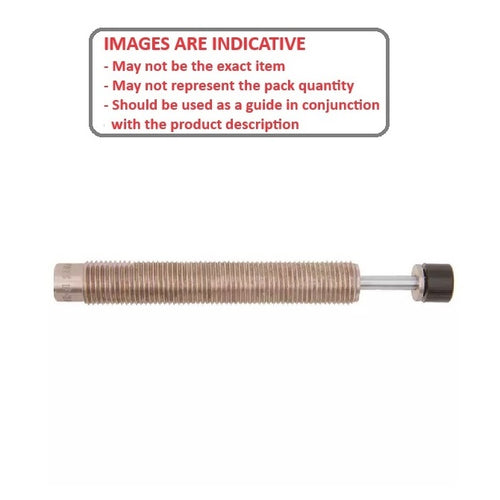

Shock Absorbers - Hydraulic - Self-CompensatingSelf-Compensating Hydraulic Shock Absorbers. This is the main category in this series
Product Data

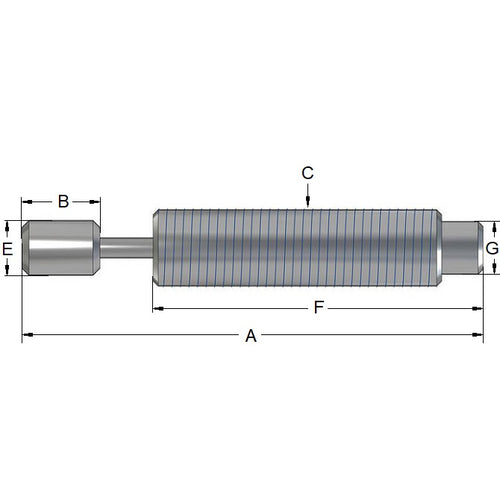

- Stroke
:
6.35
mm
(Equiv. 0.25 in.) - Thread (C) 3/8-32 UNF
- Length (A/F)
57.15 / 40.89
mm
(Equiv. 2.25 in.) - Shaft Diameter (D) 3 mm
- Bore 5 mm
- Max. Shock Force 91 KG
- Max. Propelling Force 20 KG
- Nom. Coil Spring Force Exten 0 KG
- Nom. Coil Spring Force Compres 1 KG
- More Information For more information please contact us.
Product Compliance and Data
Additional Resources
Cross References
- ED-7C
- ED7C
