REM-064-L-CN - Datasheet
MBA
Category Information

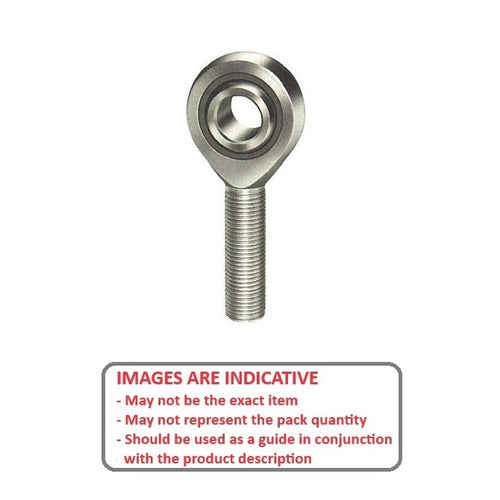

Rod Ends - Male - Steel - Nylon RacewayNylon Raceway Steel Male Rod Ends. Also known as Heim Joints
- An expanded range may be available on special order. Please enquire.
Product Data
- Eye Size (d1)
:
6.35
mm
(Equiv. 0.25 in.) - Overall Length (L)
49.20
mm
(Equiv. 1.937 in.) - Thread Size 1/4-28 UNF Left
- Min. Thread Length (l2) 25.40 mm
- Head Width (W) 7.14 mm
- Eye Width (W1) 9.53 mm
- Head Diameter (D) 19.05 mm
- Centre Height (l1) 39.68 mm
- Material Steel with Nylon Raceway
Product Compliance and Data
Additional Resources
Cross References
- SPML4
- SPML-4
