Miniature Bearings Australia
0R-0064-0914-SIL - Datasheet
MBA
Category Information

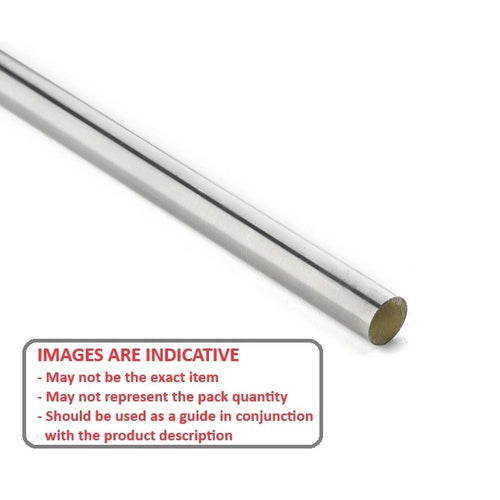

Rod - Drill - W-1 Water Hardening SilversteelW-1 Water Hardening Silversteel Drill Rod. For punches dies and high strength machine parts. Unhardened - requires heat treatment.
- An expanded range may be available on special order. Please enquire.
- High abrasion resistance and high toughness when hardened. 100 percent machinability.
- Requires heat treating to harden.
- Small diameters may not be perfectly straight.
- Refer engineering guides online for W-1 hardening requirements.
Product Data
- Diameter (d)
:
6.35
mm
+/- 0.013
(Equiv. 0.25 in.) - Length (L)
914.4
mm
(Equiv. 36 in.) - Material BS1407
- Material BS1407 SilverSteel - W-1 Water Hardening
Product Compliance and Data
Additional Resources
Cross References
- ODR440
- ODR-440
