SBTN-0635-DL - Datasheet
MBA
Category Information

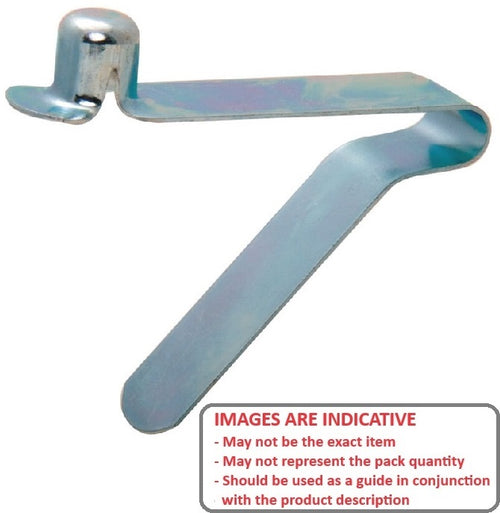

Snap Buttons - Single End - Dog LegDog Leg Single End Snap Buttons. Fasteners for telescoping tubing help reduce assembly time whilst improving your product functionality. Also called button clips or spring buttons.
- Eliminates the need for rivets and screws.
- Simply snap into place in square or round tubing.
- Made from 1050 heat treated spring steel with minimum 0.005mm (0.0002 inch) zinc plating
Product Data

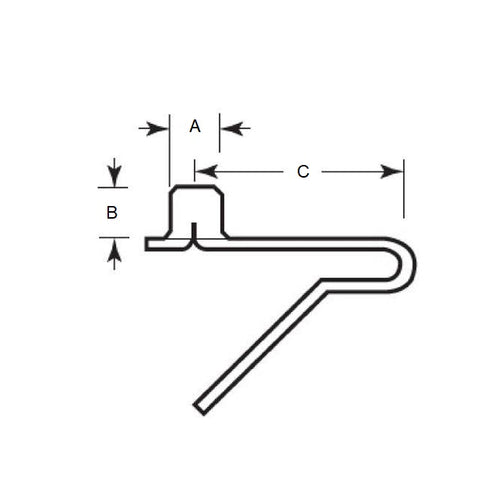

- Button Diameter (A)
:
6.35
mm
(Equiv. 0.25 in.) - Button Height (B)
7.11
mm
(Equiv. 0.28 in.) - Material Thickness
0.457
mm
(Equiv. 0.018 in.) - Clip Width 9.27 mm
- Centre to Middle of End (C) 29.72 mm
- Use with Round Tubing 11.4 to 22.0
- Use with Square Tubing 11.4 to 22.0
- Material Steel
