Miniature Bearings Australia
SJ-1MRS - Datasheet
MBA
Category Information

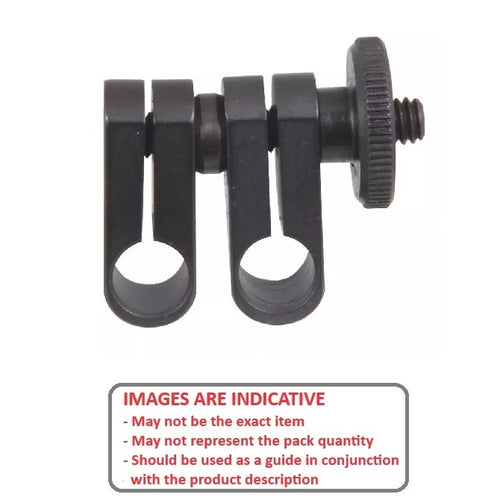

Joints - Swivel - Miniature - SteelSteel Miniature Swivel Joints. Precision made. Column lock feature. Will not become loose when adjusting. Universal design will fit any make of magnetic base, surface gauge or indicator. 12L14 Steel.
Product Data
Deleted Item. Available while stocks last. Deleted Item. Available while stocks last.
Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.

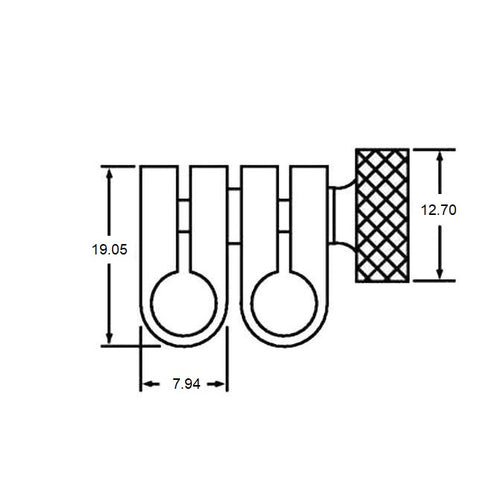

- Hole Size
:
6.35
mm
(Equiv. 0.25 in.) - Hole Size
6.35
mm
(Equiv. 0.25 in.) - A
19.050
mm
(Equiv. 0.75 in.) - B 7.938 mm
- C 12.70 mm
