ECB-0053-0064-S15 - Datasheet
MBA
Category Information

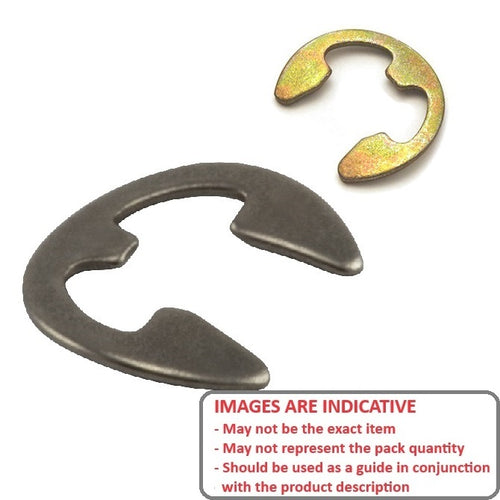

Retaining Rings - E-Clips - BowedBowed E-Clips Retaining Rings. For end play take up.
- An expanded range may be available on special order. Please enquire.
- Thickness tolerance +/- 0.025.
Product Data

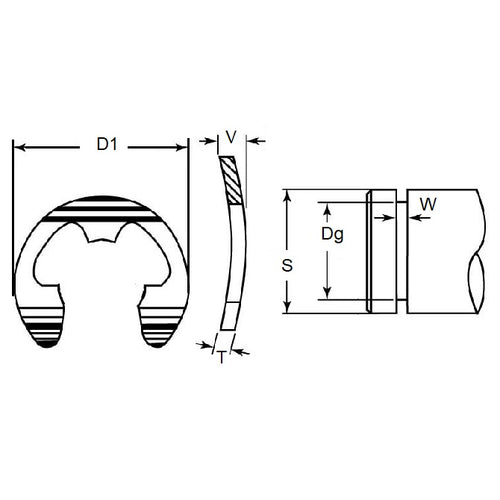

- Minimum Rec. Shaft Dia (S)
:
6.35
mm
(Equiv. 0.25 in.) - Groove Dia. (Dg)
5.33
mm
+ 0.076 / - 0.000
(Equiv. 0.21 in.) - Clip Thickness (T)
0.64
mm
+/ - 0.051
(Equiv. 0.025 in.) - Clip OD Loose (D1) 13.39 mm
- Groove Width (W) 1.19 mm
- Ring Width (X) 1.27 mm
- Force Required to Flatten 15.6 kg
- Material Carbon Steel
Product Compliance and Data
Additional Resources
Cross References
- N15010025KSF
- N1501-0025KSF
- S73KW213125
- S73KW2-131-25
