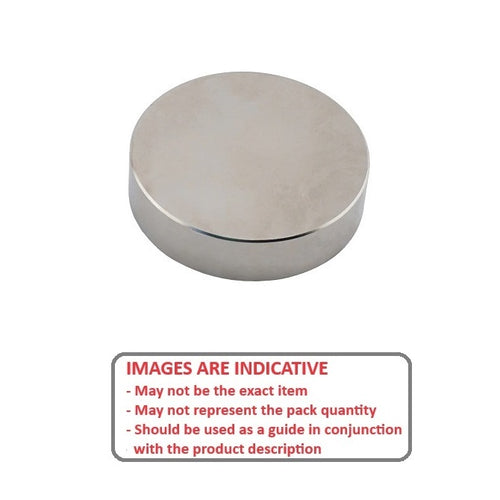

MAG-D-07-005-N35 - Datasheet
MBA
Category Information
Magnets - Rare Earth - PlatedPlated Rare Earth Magnets. Incredibly strong attraction and repulsion. Neodymium-Iron-Boron encased in nickel jackets to protect the brittle magnet material and prevent corrosion.
- High strength to weight ratios.
- Commonly used in miniature applications such as linear actuators, sensing applications, gyroscopes, flow meters, recording devices, pacemakers and alternators.
- Temperature range -73 oC to 93 oC.
- Size tolerances +/- 0.13
Product Data
Deleted Item. Available while stocks last.
Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.
- Diameter (A)
:
6.35
mm
(Equiv. 0.25 in.) - Thickness / Length (B)
5.08
mm
(Equiv. 0.2 in.) - Type Neodymium 35
- Basic Shape Disk
- Approx Max. Pull 1.03 kg
- Material Neodymium 35
Product Compliance and Data
Additional Resources
Cross References
- MAG414
- MAG-414
