EZL-035C-064C-071-C - Datasheet
MBA
Category Information

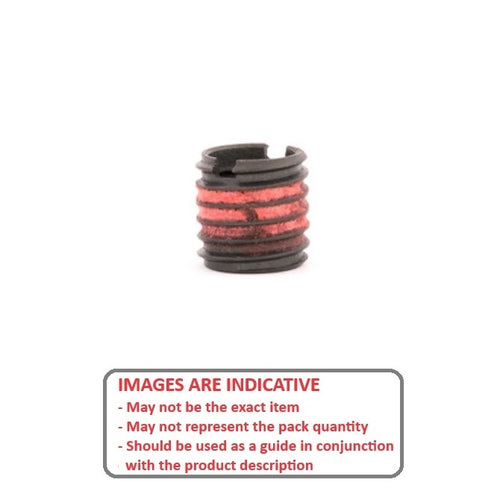

Thread Repair - Inserts - EZ-Lok - Solid Carbon SteelSolid Carbon Steel EZ-Lok Inserts Thread Repair. Easy to install with a standard tap, bolt and wrench.
- Automatic self locking pressure activated adhesive on external thread.
- Prevent or repair stripped threads
- No special tools required
- Install with a bolt and wrench
- Metric, UNC and UNF

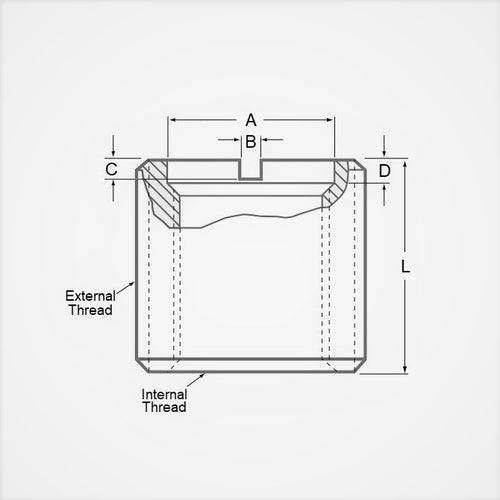

Product Data
- Internal Thread : 6-32 UNC (3.5mm)
- Length
7.11
mm
(Equiv. 0.28 in.) - External Tap Size 6.350mm (1/4-20 UNC)
- Tapping Hole Size No.7 - 5.11 mm
Product Compliance and Data
Additional Resources
Cross References
- EZ-LOK 329-006
- 90248A017
- Small Parts EZ-632
- 329006
- EZ632
