Miniature Bearings Australia
EZL-035C-060-065-C - Datasheet
MBA
Category Information

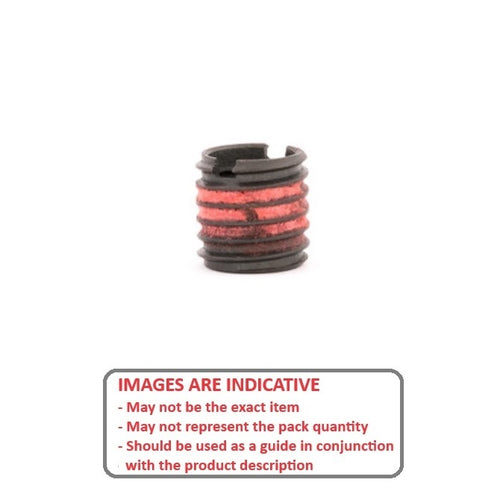

Thread Repair - Inserts - EZ-Lok - Solid Carbon SteelSolid Carbon Steel EZ-Lok Inserts Thread Repair. Easy to install with a standard tap, bolt and wrench.
- Automatic self locking pressure activated adhesive on external thread.
- Prevent or repair stripped threads
- No special tools required
- Install with a bolt and wrench
- Metric, UNC and UNF

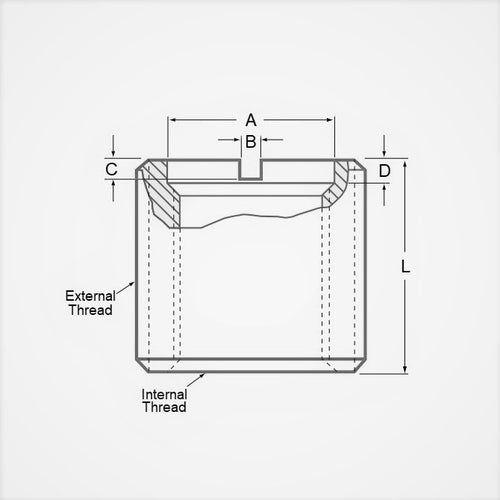

Product Data
- Internal Thread : 6-32 UNC (3.5mm)
- Length
6.50
mm
(Equiv. 0.256 in.) - External Tap Size 6.000mm (M6.0 x 1.0)
- Tapping Hole Size 5.10 mm
Product Compliance and Data
Additional Resources
Cross References
- EZ-LOK 550-006
- 97224A110
- 550006
