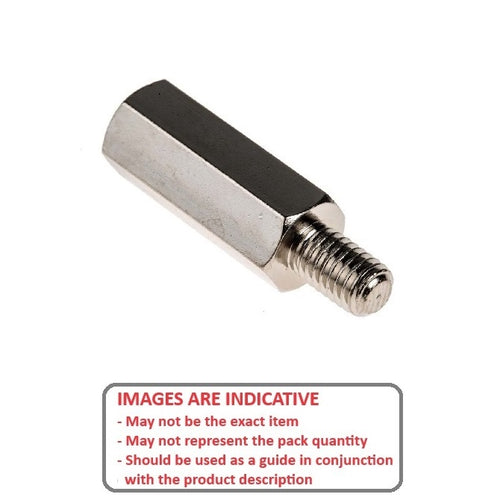

SHX-TP-0350C-06-032-S3 - Datasheet

MBA

Product Data

Deleted Item. Available while stocks last. Deleted Item. Available while stocks last.

Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.

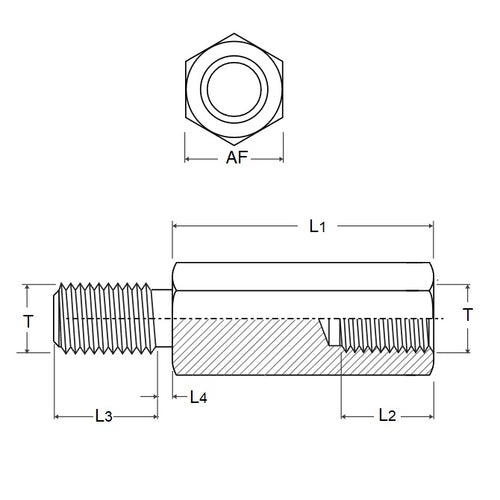

• Thread Size : 6-32 UNC (3.5mm)
• Stud Length (L3) 6.35 mm
• Base Length (L1) 25.40 mm
• Across Flats (A/F) 6.35 mm
• Bore Thread Length (L2) 9.53 mm
• Material Stainless Steel 303 (Similar to A2, 304, 18-8)

Product Compliance and Data

• RoHs Statement
• REACH Statement
• CoC

Additional Resources

• Measuring Small Parts
• Metalworking Resource Guide

Cross References

• 91075A446
• Reid Tool® RAF-830
• RAF830
