SHX-TP-0350C-06-025-S3 - Datasheet

MBA

Product Data

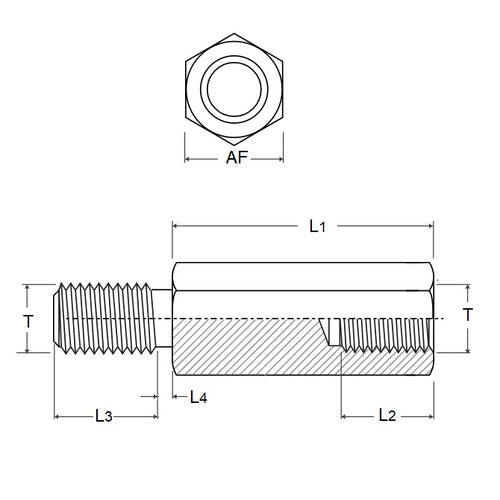

• Thread Size : 6-32 UNC (3.5mm)
• Stud Length (L3) 6.35 mm
• Base Length (L1) 19.05 mm
• Across Flats (A/F) 6.35 mm
• Bore Thread Length (L2) 9.53 mm
• Material Stainless Steel 303 (Similar to A2, 304, 18-8)

Product Compliance and Data

• RoHs Statement
• REACH Statement
• CoC

Additional Resources

• Measuring Small Parts
• Metalworking Resource Guide

Cross References

• 91075A444
• Reid Tool® RAF-826
• RAF826
