Miniature Bearings Australia
NT035C-NI-CS - Datasheet
MBA
Category Information

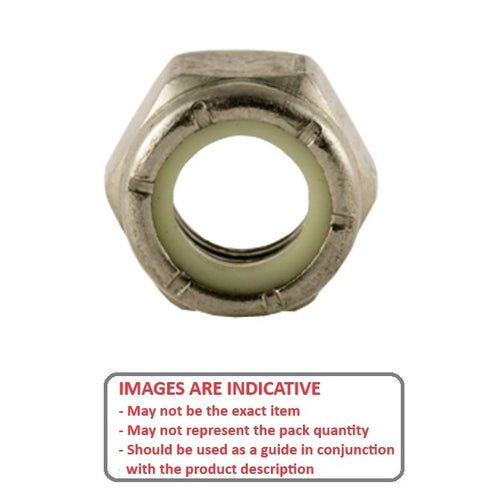

Nuts - Hexagonal - Nylon Insert - SteelSteel Nylon Insert Hexagonal Nuts. Nylon Insert for Locking. NylocTM and other brands.
- An expanded range may be available on special order. Please enquire.
- Note! Thickness (H) and A/F (A) dimensions are usually considered not critical and may vary.
- If the A and H dimensions are critical for your application please consult us prior to ordering.
Product Data
Deleted Item. Available while stocks last. Deleted Item. Available while stocks last.
Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.
- Thread Size : 6-32 UNC (3.5mm)
- Thickness (H)
4.2
mm
(Equiv. 0.165 in.) - Across Flats (A/F)
7.7
mm
(Equiv. 0.303 in.) - 4.2
- Type Standard
- Pitch 0.794 mm
- Threads Per Inch 32 TPI
- Material Steel - Plated
Product Compliance and Data
Additional Resources
Cross References
- 90631A007
- MicroFast NI0632
- ROCNIN048
- ROC-NIN-048
