SC035C-007-F-PH-S4 - Datasheet

MBA

Product Data

Deleted Item. Available while stocks last.

Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.

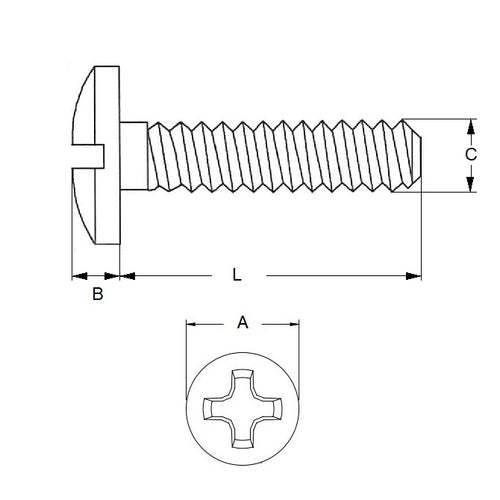

• Thread Size (C) : 6-32 UNC (3.5mm)
• Thread Length (L) 7.9 mm
  (Equiv. 0.311 in.)
• Material 304 Stainless
• Max Head Diameter 6.9 mm
• Max Head Height 2.1 mm
• Type Fillister (Cheese) / Philips
• Pitch 0.794 mm
• Threads Per Inch 32 TPI
• Material Stainless Steel 304 (Similar to A2, 18-8) HRB80

Product Compliance and Data

• RoHs Statement
• REACH Statement
• CoC

Additional Resources

• PDF Screws Catalogue

• Washers

• Nuts


• Measuring Small Parts
• Metalworking Resource Guide

• Screws & Nuts Catalogue
• Shoulder Screws Catalogue
• Socket Set (Grub) Screws Catalogue
• Thumb Screws & Thumb Nuts Catalogue
• Thread Size Chart - Combined Imperial & Metric

Cross References

• 91737A106
