SC035C-006-R-SL-N - Datasheet
MBA
Category Information

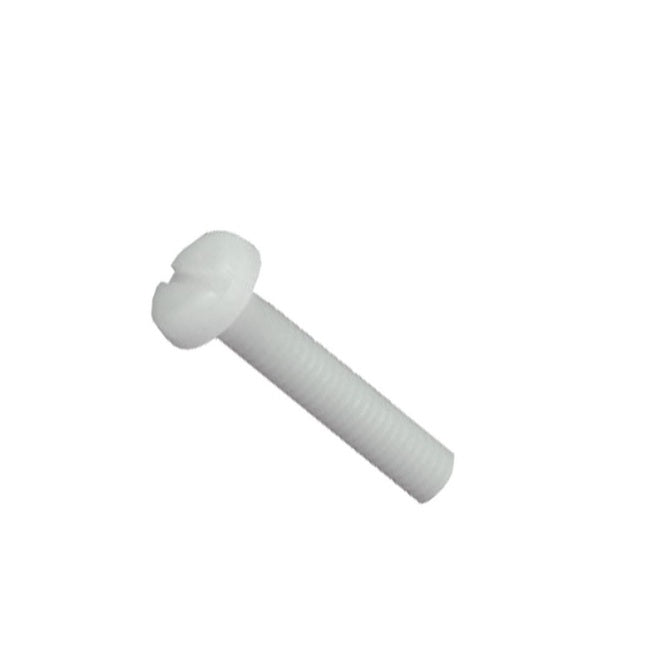

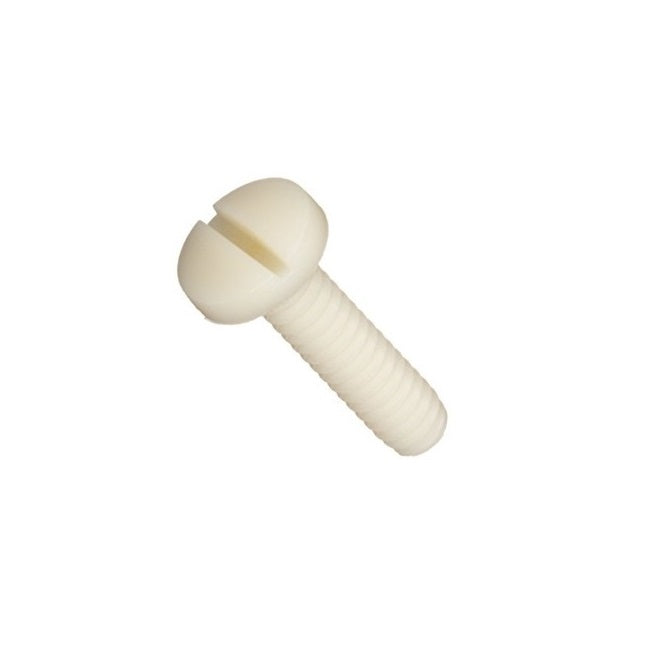

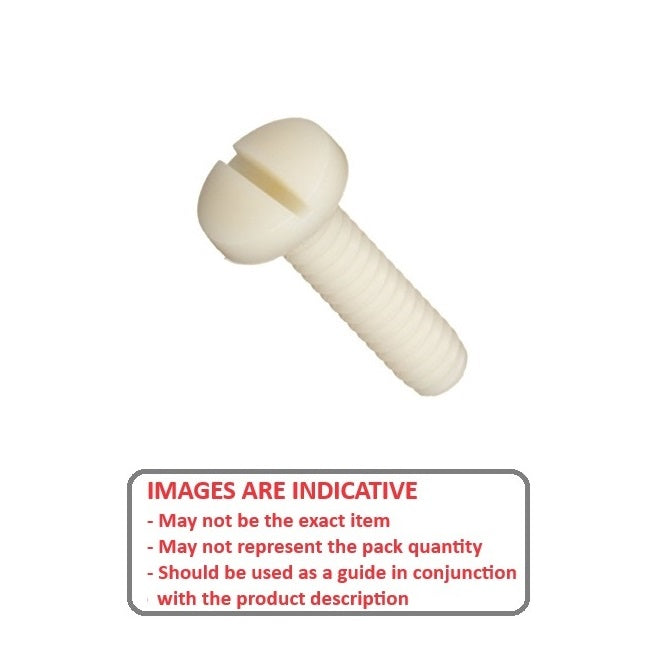

Screws - Round Head - Slotted - NylonNylon Slotted Round Head Screws. UNC - UNF
- An expanded range may be available on special order. Please enquire.
- Non Conductive.
- Non Corrosive.
- Non Magnetic.
- Lightweight.
- Vibration Resistant.
Product Data
Deleted Item. Available while stocks last.
Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.

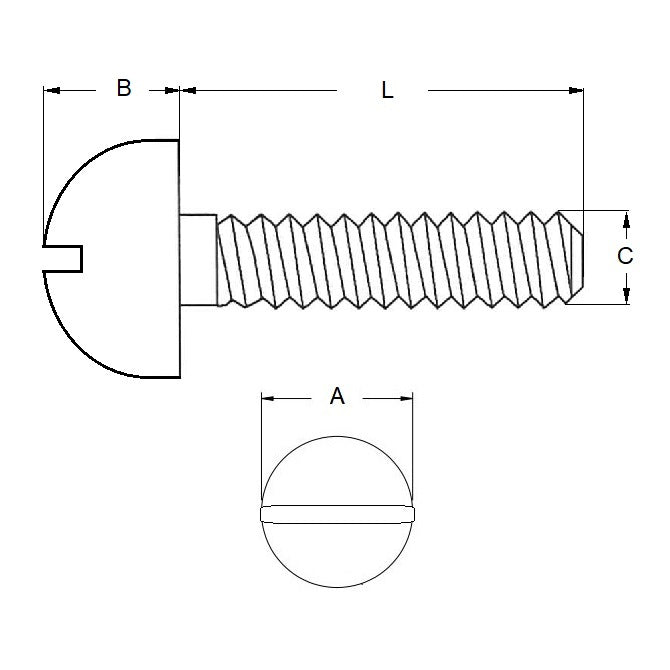

- Thread Size (C) : 6-32 UNC (3.5mm)
- Thread Length (L)
6.4
mm
(Equiv. 0.252 in.) - Material Nylon (Zytel 101)
- Max Head Diameter 6.61 mm
- Max Head Height 2.62 mm
- Type Round / Slotted
- Pitch 0.794 mm
- Threads Per Inch 32 TPI
- Material Nylon (Polyamide 6/6)
Product Compliance and Data
Additional Resources
- Screws & Nuts Catalogue
- Shoulder Screws Catalogue
- Socket Set (Grub) Screws Catalogue
- Thumb Screws & Thumb Nuts Catalogue
- Thread Size Chart - Combined Imperial & Metric
Cross References
- 97263A723
- A9M50R063204
- A9M50-R063204
- A 9M50-R063204
