Miniature Bearings Australia
SS035C-0064-S3-NT - Datasheet
MBA
Category Information

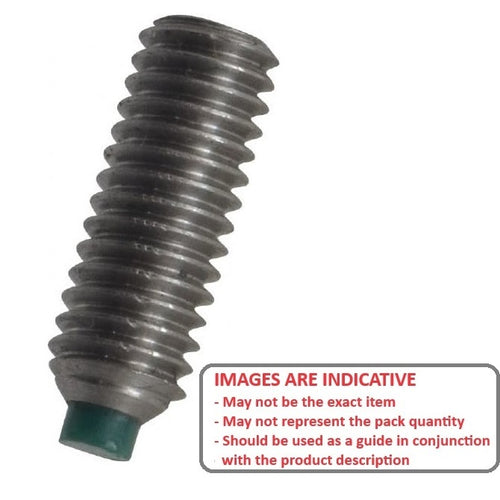

Socket Set Screws - Nylon Tipped - 304 Stainless Steel304 Stainless Steel Nylon Tipped Socket Set Screws. Nylon tipped grub screws. Soft tip compresses into threads to become self locking. Helps to prevent shaft damage.
Product Data
- Thread Size : 6-32 UNC (3.5mm)
- Thread Length (L)
6.4
mm
(Equiv. 0.252 in.) - Type Nylon Tipped
- Overall Length (L + L1) 7.1 mm
- Tip Diameter (d) 1.6 mm
- Tip Length (L1) 0.7
- Pitch 0.794 mm
- Threads Per Inch 32 TPI
- Drive Type Socket
- Material Stainless Steel 18-8 (Similar to A2, 303, 304)
Product Compliance and Data
Additional Resources
- Screws & Nuts Catalogue
- Shoulder Screws Catalogue
- Socket Set (Grub) Screws Catalogue
- Thumb Screws & Thumb Nuts Catalogue
- Thread Size Chart - Combined Imperial & Metric
Cross References
- 90291A144
- BTS945
- BTS-945
- A9X93SO063218
- A9X93-SO063218
