SRD-T-0350C-06-025-S3 - Datasheet

MBA

Category Information

Spacers - Threaded - Round

Round Threaded Spacers. Brass or 303 Stainless Steel

    Product Data

    Deleted Item. Available while stocks last.

    Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.

    • Thread Size : 6-32 UNC (3.5mm)
    • OD (D) 6.35 mm
      (Equiv. 0.25 in.)
    • Length (L) 25.4 mm
      (Equiv. 1 in.)
    • Material Stainless Steel Grade 303/304 HRB80
    Country of Origin: US

    Product Compliance and Data

    Additional Resources

      Cross References

      • 91125A449
      • A9X43A63232
      • A9X43-A63232
      • A 9X43-A63232
      View full details

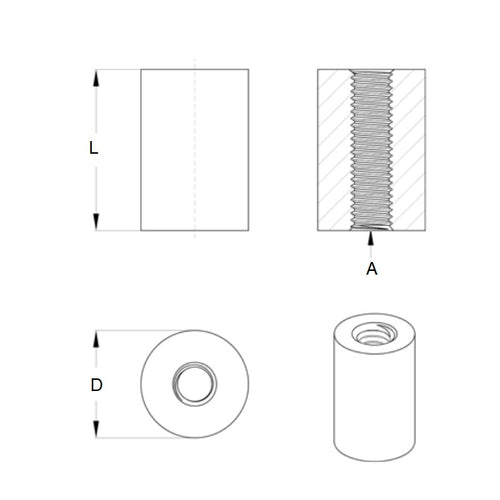

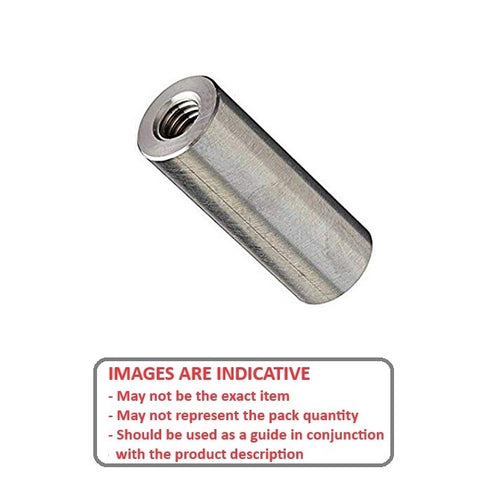

      SRD-T-0350C-06-025-S3DiagramSRD-T-0350C-06-025-S3Image
