SK035C-051-SK-C - Datasheet
Brighton Best
Category Information

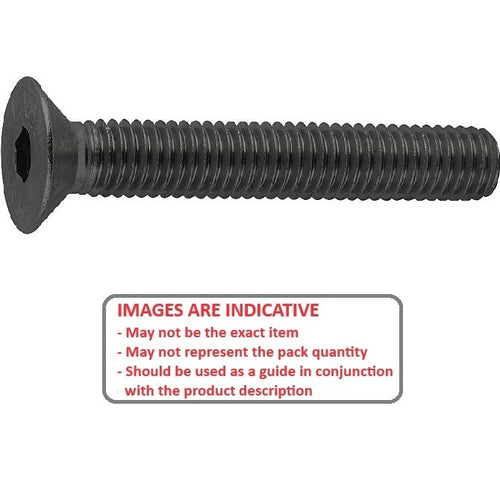

Screws - Countersunk - Socket - Steel - StandardStandard Steel Socket Countersunk Screws. Flat Head Countersunk UNC - UNF - METRIC - Alloy Steel
- An expanded range may be available on special order. Please enquire.
- Imperial Sizes to ANSI B18.3.
- Metric Sizes to DIN7991.
- Rc38-42
- ASTM F835 - alloy steel. ISO 10642.
- The thread length indicated is the minimum. Some batches may be produced with longer threaded sections or even full threaded shanks.
Product Data
- Thread Size (C) : 6-32 UNC (3.5mm)
- Overall Length (L)
50.8
mm
+ 0.0 / - 1.02
(Equiv. 2 in.) - Material High Tensile Steel / Black Oxide
- Max Head Diameter 7.8 mm
- Max Head Height 2.5 mm
- Minimum Thread Length (l) Not Specified mm
- Hex Key (s) 1.98 (5/64) mm
- Countersunk Angle 82 °
- Pitch 0.794 mm
- Threads Per Inch 32 TPI
- Material High Tensile Steel Black Oxide
Product Compliance and Data
Additional Resources
- Screws & Nuts Catalogue
- Shoulder Screws Catalogue
- Socket Set (Grub) Screws Catalogue
- Thumb Screws & Thumb Nuts Catalogue
- Thread Size Chart - Combined Imperial & Metric
Cross References
- Brighton Best 721073
- 91253A159
