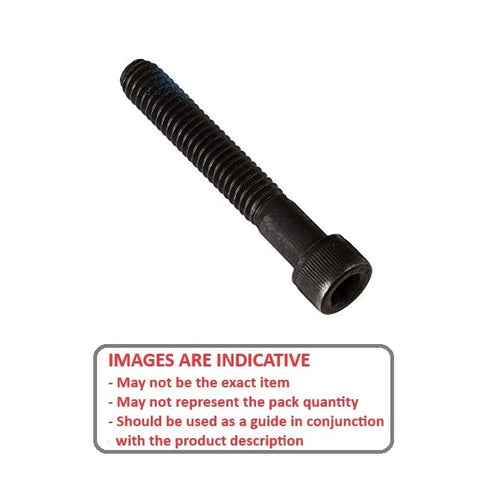

SC035C-051-C-SK-C - Datasheet
Brighton Best
Category Information
Screws - Socket Cap - Alloy Steel - Black OxideBlack Oxide Alloy Steel Socket Cap Screws. UNC - UNF - METRIC - Alloy Steel.
- An expanded range may be available on special order. Please enquire.
- Imperial Sizes to ANSI B18.3.
- Metric Sizes to DIN912.
Product Data
- Thread Size (C) : 6-32 UNC (3.5mm)
- Thread Length (L)
50.8
mm
(Equiv. 2 in.) - Material High Tensile Steel / Black Oxide
- Head Length (B Max.) 3.5 mm
- Head Diameter (A Max.) 5.8 mm
- Drive Depth (E) 1.63 mm
- Shank Diameter (C) 3.38 - 3.51 mm
- Hex Key (D) 2.78 (7/64) mm
- Pitch 0.794 mm
- Threads Per Inch 32 TPI
- Min thread Length 19.1 mm
- Material High Tensile Steel Black Oxide
Product Compliance and Data
Additional Resources
- Screws & Nuts Catalogue
- Shoulder Screws Catalogue
- Socket Set (Grub) Screws Catalogue
- Thumb Screws & Thumb Nuts Catalogue
- Thread Size Chart - Combined Imperial & Metric
Cross References
- 91251A159
- MicroFast SCA0632
- HK-86300B
- HK86300B
