SS035C-0048-AS-CP - Datasheet

MBA

Product Data

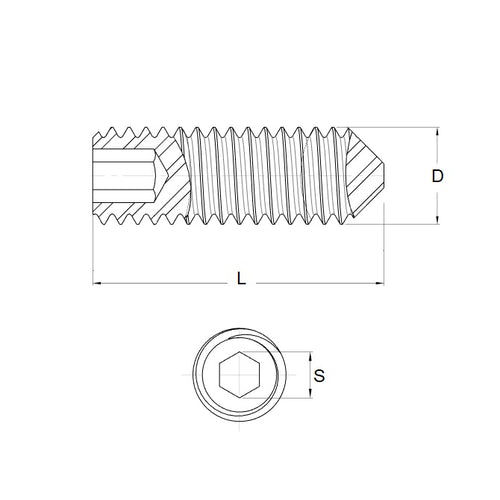

• Thread Size : 6-32 UNC (3.5mm)
• Thread Length (L) 4.8 mm
  (Equiv. 0.189 in.)
• Type Cone Point
• Hex Key Size 1.59 (1/16)
• Pitch 0.794 mm
• Threads Per Inch 32 TPI
• Point Angle 90 ° +/- 2
• Material Carbon Steel

Product Compliance and Data

• RoHs Statement
• REACH Statement
• CoC

Additional Resources

• Socket Set Screws Master PDF


• Measuring Small Parts
• Metalworking Resource Guide

• Screws & Nuts Catalogue
• Shoulder Screws Catalogue
• Socket Set (Grub) Screws Catalogue
• Thumb Screws & Thumb Nuts Catalogue
• Thread Size Chart - Combined Imperial & Metric

Cross References

• 92695A131
• BRB-121019P
• BRB121019P
