SC035C-032-H-SL-N - Datasheet

MBA

Product Data

Deleted Item. Available while stocks last.

Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.

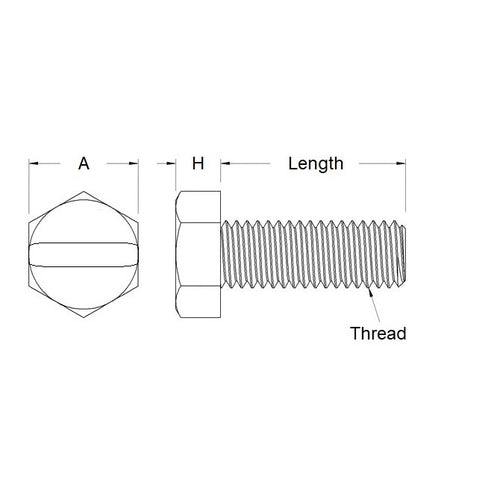

• Thread Size (C) : 6-32 UNC (3.5mm)
• Thread Length (L) 31.8 mm
  (Equiv. 1.252 in.)
• Material Nylon (Zytel 101)
• Max Head Diameter 6.35 mm
• Max Head Height 2.36 mm
• Head Type Hex Head / Slotted
• Pitch 0.794 mm
• Threads Per Inch 32 TPI
• Material Nylon (Zytel 101)

Product Compliance and Data

• RoHs Statement
• REACH Statement
• CoC
