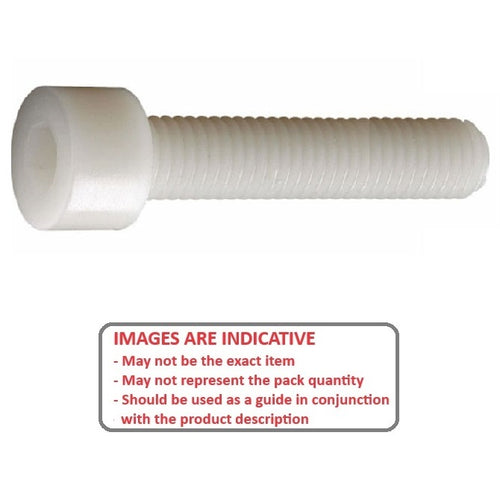

SC035C-025-C-SK-N - Datasheet

MBA

Product Data

Deleted Item. Available while stocks last.

Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.

• Thread Size (C) : 6-32 UNC (3.5mm)
• Thread Length (L) 25.4 mm
  (Equiv. 1 in.)
• Material Nylon (Zytel 101)
• Head Length (B Max.) 3.5 mm
• Head Diameter (A Max.) 5.8 mm
• Drive Depth (E) 1.63 mm
• Shank Diameter (C) 3.38 - 3.51 mm
• Hex Key (D) 2.78 (7/64) mm
• Pitch 0.794 mm
• Threads Per Inch 32 TPI
• Min thread Length 19.1 mm
• Material Nylon (Polyamide 6/6)

Product Compliance and Data

• RoHs Statement
• REACH Statement
• CoC

Additional Resources

• PDF Screws Catalogue

• Washers

• Nuts


• Measuring Small Parts
• Metalworking Resource Guide

• Screws & Nuts Catalogue
• Shoulder Screws Catalogue
• Socket Set (Grub) Screws Catalogue
• Thumb Screws & Thumb Nuts Catalogue
• Thread Size Chart - Combined Imperial & Metric

Cross References

• 95868A304
• MicroFast NSC0616
• A9M52-063216
• A9M52063216
• A 9M52-063216
