THS035C-025-K-3-P - Datasheet
MBA
Category Information

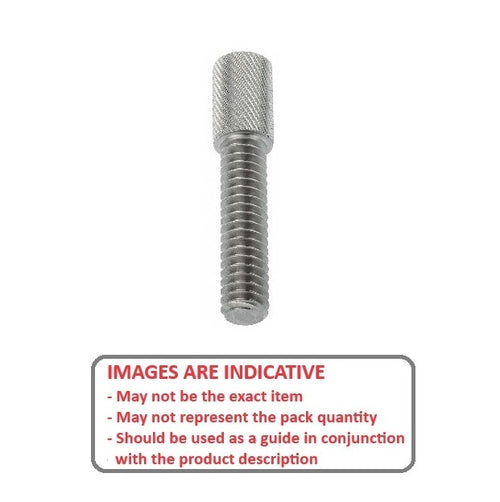

Screws - Thumb - Knurled - Stainless - Precision HeadPrecision Head Stainless Knurled Thumb Screws. This is the main category in this series
- An expanded range may be available on special order. Please enquire.
Product Data

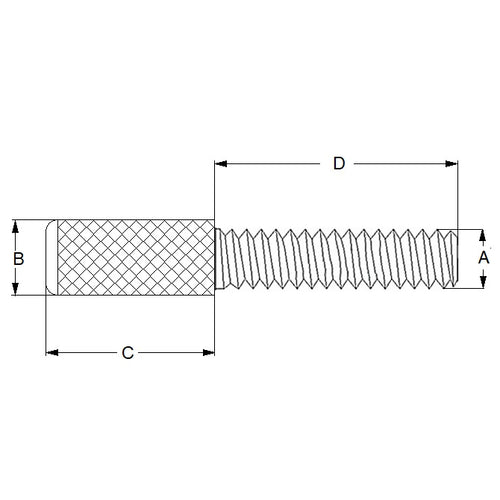

- Thread Size (A) : 6-32 UNC (3.5mm)
- Thread Length (D)
25.40
mm
(Equiv. 1 in.) - Overall Length (C+D)
34.93
mm
(Equiv. 1.375 in.) - Head Diameter (B) 4.76 mm
- Head Type Knurled
- Material Stainless Steel 303/304 (Similar to A2, 18-8) HRB80
Product Compliance and Data
Additional Resources
- Screws & Nuts Catalogue
- Shoulder Screws Catalogue
- Socket Set (Grub) Screws Catalogue
- Thumb Screws & Thumb Nuts Catalogue
- Thread Size Chart - Combined Imperial & Metric
Cross References
- 91746A122
- KTS4122
- KTS-4122
