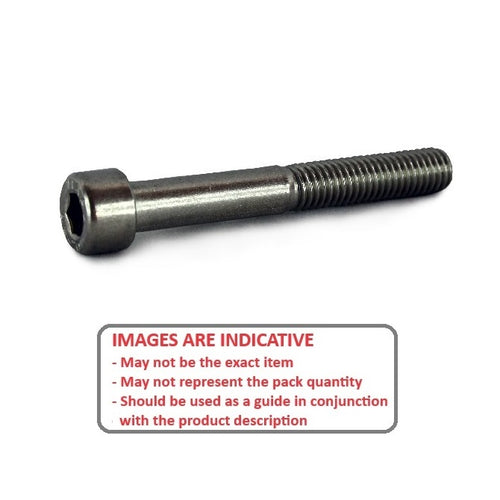

SC035C-022-C-SK-S4 - Datasheet
Brighton Best
Category Information
Screws - Socket Cap - Stainless - 303-304303-304 Stainless Socket Cap Screws. UNC - UNF - METRIC - Stainless Steel.
- An expanded range may be available on special order. Please enquire.
- Imperial Sizes to ANSI B18.3.
- Metric Sizes to DIN912.
Product Data
- Thread Size (C) : 6-32 UNC (3.5mm)
- Thread Length (L)
22.2
mm
(Equiv. 0.874 in.) - Material 304 Stainless
- Head Length (B Max.) 3.5 mm
- Head Diameter (A Max.) 5.8 mm
- Drive Depth (E) 1.63 mm
- Shank Diameter (C) 3.38 - 3.51 mm
- Hex Key (D) 2.78 (7/64) mm
- Min thread Length 19.1 mm
- Material Stainless Steel 304 (Similar to A2, 18-8) HRB80
Product Compliance and Data
Additional Resources
- Screws & Nuts Catalogue
- Shoulder Screws Catalogue
- Socket Set (Grub) Screws Catalogue
- Thumb Screws & Thumb Nuts Catalogue
- Thread Size Chart - Combined Imperial & Metric
Cross References
- Brighton Best 592135
- 92196A152
