Miniature Bearings Australia
THS035C-013-K-SS-WF - Datasheet
MBA
Category Information

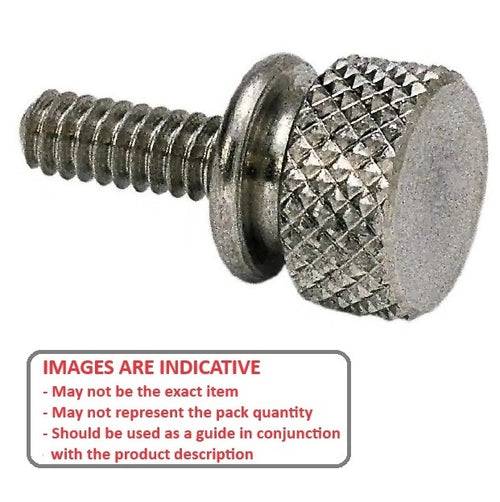

Screws - Thumb - Knurled - Washer Face - Stainless SteelStainless Steel Washer Face Knurled Thumb Screws. Knurled head stainless steel thumb screws with an integral washer
- An expanded range may be available on special order. Please enquire.
Product Data
- Thread Size : 6-32 UNC (3.5mm)
- Thread Length (D)
12.70
mm
(Equiv. 0.5 in.) - Overall Length (C)
20.64
mm
(Equiv. 0.813 in.) - Head Diameter (A) 9.53 mm
- Head Height (B) 4.76 mm
- Finish Plain
- Washer Diameter (E) 9.53 mm
- Material Stainless Steel
Product Compliance and Data
Additional Resources
- Screws & Nuts Catalogue
- Shoulder Screws Catalogue
- Socket Set (Grub) Screws Catalogue
- Thumb Screws & Thumb Nuts Catalogue
- Thread Size Chart - Combined Imperial & Metric
Cross References
- 99607A120
- AJ-998
- AJ998
