SK035C-011-SK-S4 - Datasheet
MBA
Category Information

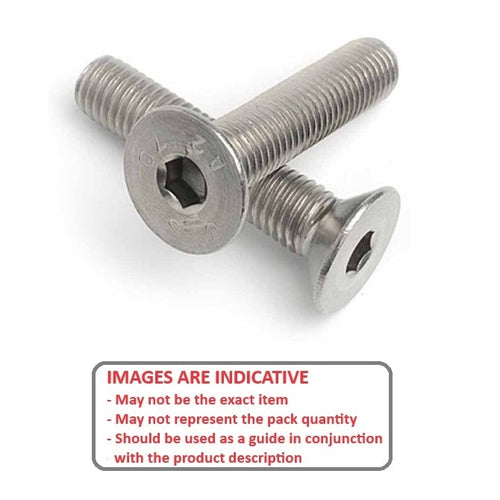

Screws - Countersunk - Socket - 304 Stainless304 Stainless Socket Countersunk Screws. Flat Head Countersunk UNC - UNF - METRIC - Stainless Steel
- An expanded range may be available on special order. Please enquire.
- Imperial Sizes to ANSI B18.3.
- Metric Sizes to DIN7991.
- ISO 10642
- The thread length indicated is the minimum. Some batches may be produced with longer threaded sections or even full threaded shanks.
Product Data
Deleted Item. Available while stocks last.
Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.
- Thread Size (C) : 6-32 UNC (3.5mm)
- Overall Length (L)
11.1
mm
+ 0.0 / - 0.76
(Equiv. 0.437 in.) - Material 304 Stainless
- Head Diameter (A) 7.8 mm
- Max Head Height 2.5 mm
- Minimum Thread Length (l) Not Specified mm
- Hex Key (s) 1.98 (5/64) mm
- Countersunk Angle 82 °
- Pitch 0.794 mm
- Threads Per Inch 32 TPI
- Material Stainless Steel 304 (Similar to A2, 18-8) HRB80
Product Compliance and Data
Additional Resources
- Screws & Nuts Catalogue
- Shoulder Screws Catalogue
- Socket Set (Grub) Screws Catalogue
- Thumb Screws & Thumb Nuts Catalogue
- Thread Size Chart - Combined Imperial & Metric
Cross References
- 92210A114
- MicroFast SFS0607
