THS035C-011-K-AL-WF - Datasheet
MBA
Category Information

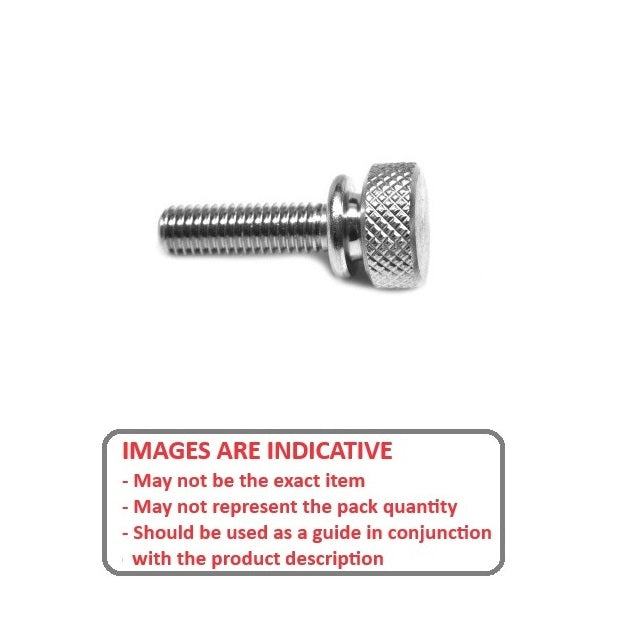

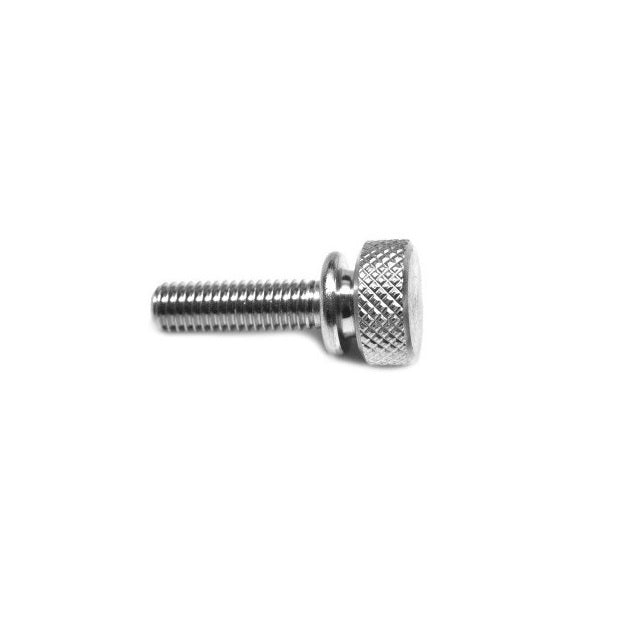

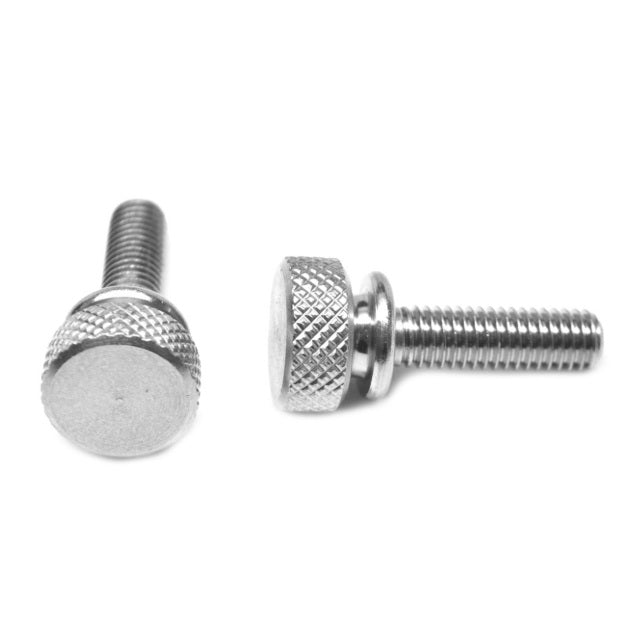

Screws - Thumb - Knurled - Washer Face - AluminiumAluminium Washer Face Knurled Thumb Screws. Knurled head aluminum thumb screws with an integral washer
- An expanded range may be available on special order. Please enquire.
Product Data
- Thread Size : 6-32 UNC (3.5mm)
- Thread Length (D)
11.11
mm
(Equiv. 0.437 in.) - Overall Length (C)
19.05
mm
(Equiv. 0.75 in.) - Head Diameter (A) 9.53 mm
- Head Height (B) 4.76 mm
- Finish Plain
- Washer Diameter (E) 9.53 mm
- Material Aluminium
Product Compliance and Data
Additional Resources
- Screws & Nuts Catalogue
- Shoulder Screws Catalogue
- Socket Set (Grub) Screws Catalogue
- Thumb Screws & Thumb Nuts Catalogue
- Thread Size Chart - Combined Imperial & Metric
Cross References
- 94567A240
- AJ875
- AJ-875
