DP060-030-CH-1E - Datasheet
NoCor
Category Information

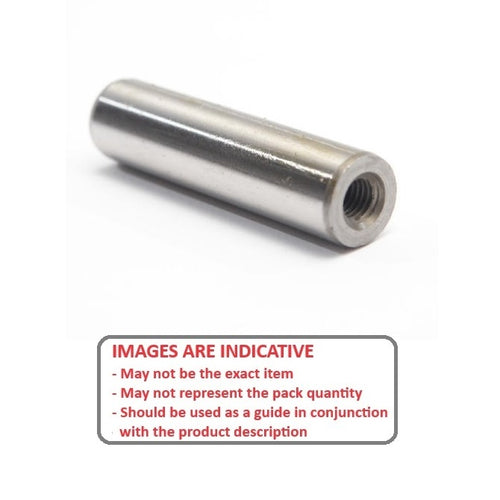

Pins - Dowel - Extractable - Carbon SteelCarbon Steel Extractable Dowel Pins. Hardened and Ground Steel 100 Cr6. Din 7979.
- Also known as parallel pins
- Dowel pins are not used as bearing shafts under normal circumstances, due to their oversized tolerances
- An expanded range may be available on special order. Please enquire.

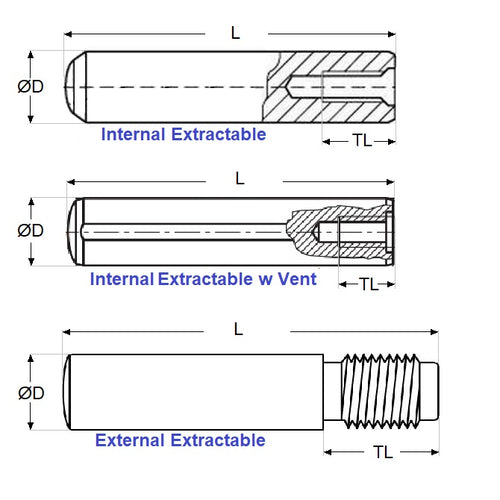

- Extractable dowels have a thread tapped in the end to fascilitate removal from blind holes.
- Hardness 55-62 HRC, HV550-650
- Extractable pins may or may not have a flat to vent pressure when pulling
Product Data
- Diameter (D)
:
6.000
mm
+ 0.006 / + 0.015
(Equiv. 0.236 in.) - Length (L)
30.00
mm
+/- 0.500
(Equiv. 1.181 in.) - Approx. Overall Length
30.00
mm
+/ - 0.500
(Equiv. 1.181 in.) - Type 1 (Chamfer One End)
- Thread Size M4 (4x0.7mm)
- DIN 6325
- Material Carbon Steel Rc 58-62
Product Compliance and Data
Additional Resources
Cross References
- NoCor DOWPM-060-030
- PD-275
- PD275
- DOWPM060030
- DHX630
- DHX6-30
