ES-0600-0250-06-S4 - Datasheet
MBA
Category Information

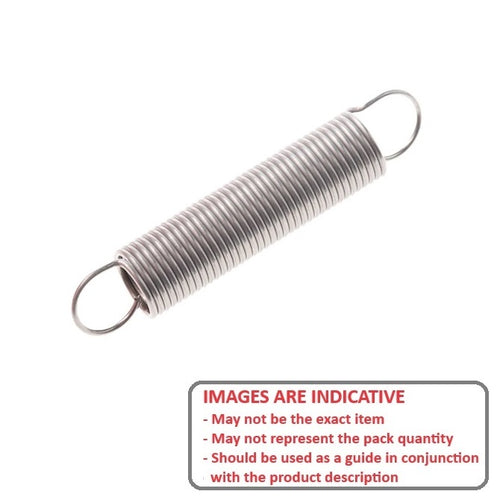

Springs - Extension - Stainless SteelStainless Steel Extension Springs. 300 gradd stainless steel selection, including 303, 304 and 316.
- Helical spring that absorbs and stores energy by resisting a pulling force. When extended, it stores energy, and when released, it redistributes that energy to return to its original, coiled shape.
- Typically used to provide a pulling force between two objects, often with hooks or loops on either end for attachment.
- This category includes short and long lengths. An expanded range may be available on special order. Please enquire.
- 302 Stainless springs not recommended for applications exceeding 260 Deg C (500 Deg F).
- 302 stainless steel is slightly magnetic.

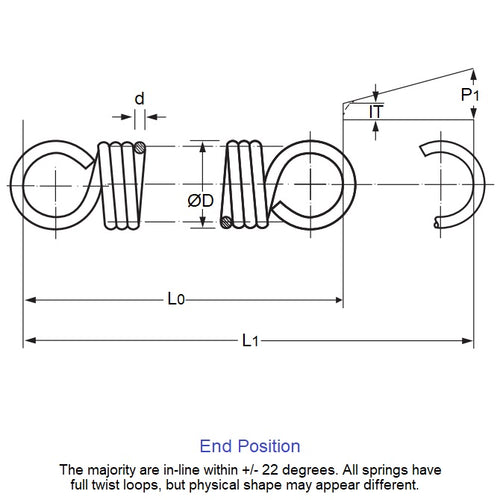

Product Data
- OD (D0) : 6.00 mm
- Approx. Overall Length (L0) 25 mm
- Wire Diameter (d) 0.600 mm
- Max. Extension (L1) 46.20 mm
- Spring Rate 0.32 N/mm
- Initial Tension (IT) 1.3 N
- Load at L1 8.14 N
- Material Stainless Steel 304 (Similar to A2, 18-8) HRB80
Product Compliance and Data
Additional Resources
Cross References
- Misumi® C-AUY6-25
- CAUY625
