RCL-062-102-S4 - Datasheet
MBA
Category Information

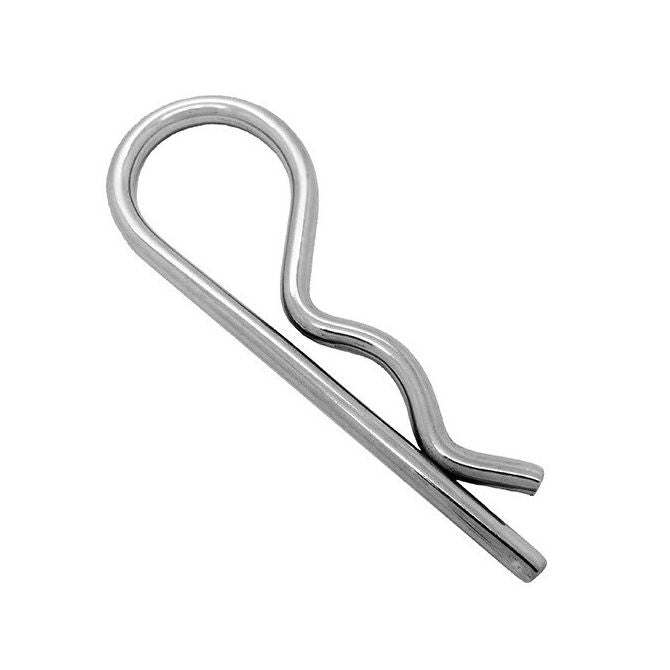

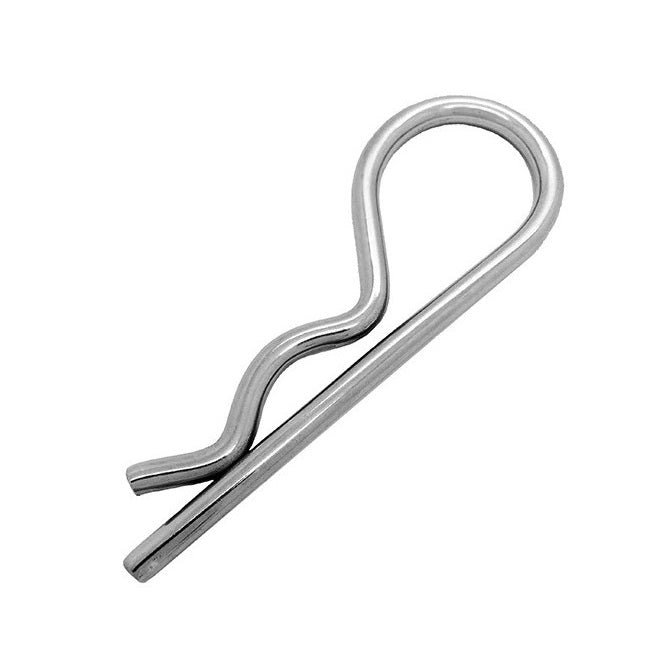

R Clips - Single Coil - Stainless SteelStainless Steel Single Coil R Clips. Also known as internal hitch pins, bridge pins or humpback pins
- An expanded range may be available on special order. Please enquire.
Product Data
- Wire Thickness (d)
:
6.20
mm
(Equiv. 0.244 in.) - Length (L)
102.0
mm
(Equiv. 4.016 in.) - Material 304 Stainless Steel
- Drill Hole Size 6.75 mm
- Inside Eye Diameter (D) 23.81 mm
- Shaft Size Range 19.05 to 25.40 mm
- Approx. Bridge Length (D1) 43 mm
- Material Stainless Steel
